General Specification |
||||||
| Frequency Range |
|
UHF:400-470MHz |
|
Channel Capacity |
|
16 |
| Channel Spacing |
|
12.5/25.0KHz |
|
Operation Voltage |
|
DC7.4V |

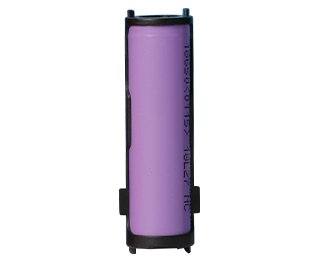

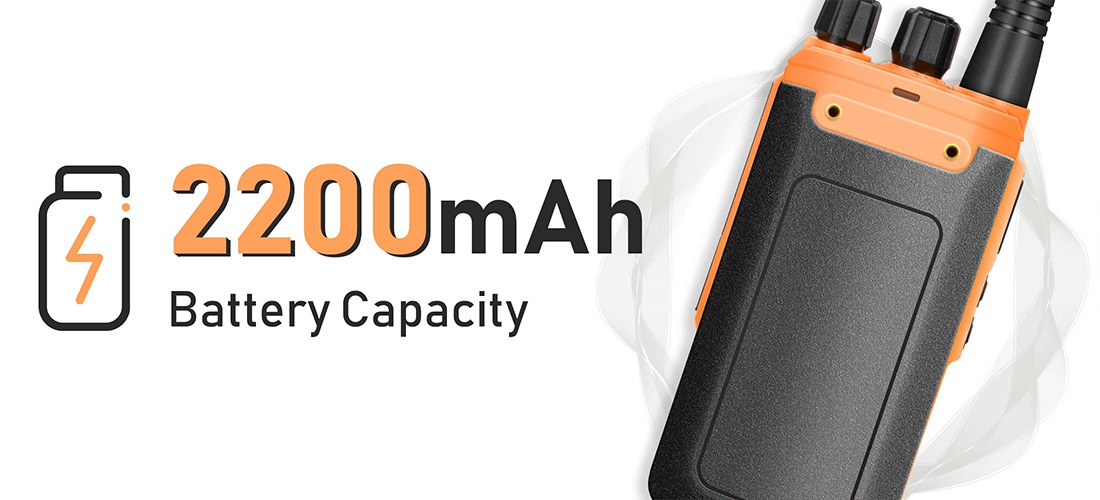

| Battery Capacity |
|
2200mAh (Li-ion) |
|
Battery Life (5-5-90 Duty Cycle) |
|
About 15 Hours |
| Frequency Stability |
|
±2.5 PPM |
|
Operating Temperature |
|
-20℃~+60℃ |

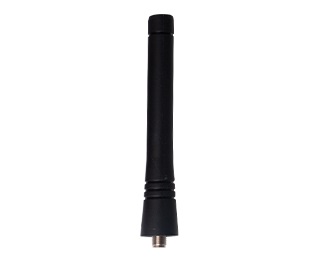

| Antenna Impedance |
|
50Ω |
|
Weight (With Antenna & Battery) |
|
190g |
| Dimension (HxWxD) (Without Antenna ) |
|
106x53x32mm |
|
|||
|
Transmitter |
||||||
| RF Power Output |
|
UHF: 3.0W/1.0w |
|
Modulation Type |
|
F3E |
| Spurious and Harmonics |
|
-36dBm<1GHz; -30dBm>1GHz |
|
FM Noise |
|
40/45dB |
| Audio Distortion |
|
≤5% |
|
Modulation Limiting |
|
±2.5@12.5KHz； ±5.0@25KHz |
| Audio Response |
|
+1 to -3dB |
|
|||
|
Receiver |
||||||
| Sensitivity |
|
≤0.30/0.20μV |
|
Adjacent Channel Selectivity |
|
60dB |
| Intermodulation |
|
60dB |
|
Spurious Response Rejection |
|
65dB |
| S/N |
|
40/45dB |
|
Audio Power Output |
|
500mW |
| Audio Distortion |
|
≤5% |
|
|||
