General |
||||||
| Frequency Range |
|
UHF:400-520MHz |
|
Channel Capacity |
|
16 channels |
| Channel Spacing |
|
W 12.5 / N 25.0KHz |
|
Operating Voltage |
|
DC 7.4V |

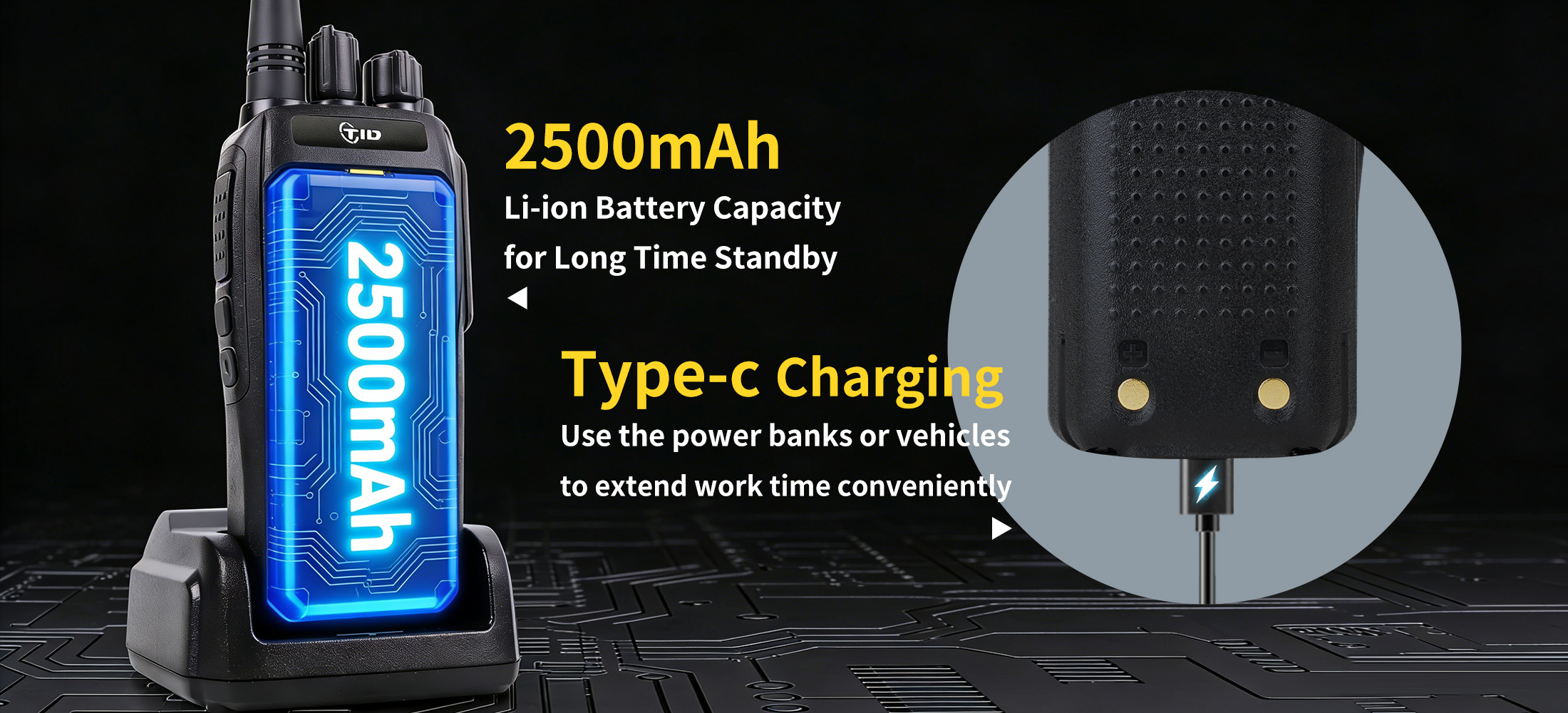

| Battery Capacity |
|
2500mAh |
|
Frequency Stability |
|
±2.5PPM |
| Operating Temperature |
|
-20℃ to +60℃ |
|
Antenna Impedance |
|
50Ω |
| Standby Current |
|
≤20 mA |
|
Weight (With Antenna & Battery) |
|
302g |
| Dimension (HxWxD) (Without Antenna) |
|
140*55*43mm |
|
|||
|
Transmitter |
||||||
| Carrier frequency tolerance |
|
±2.5PM |
|

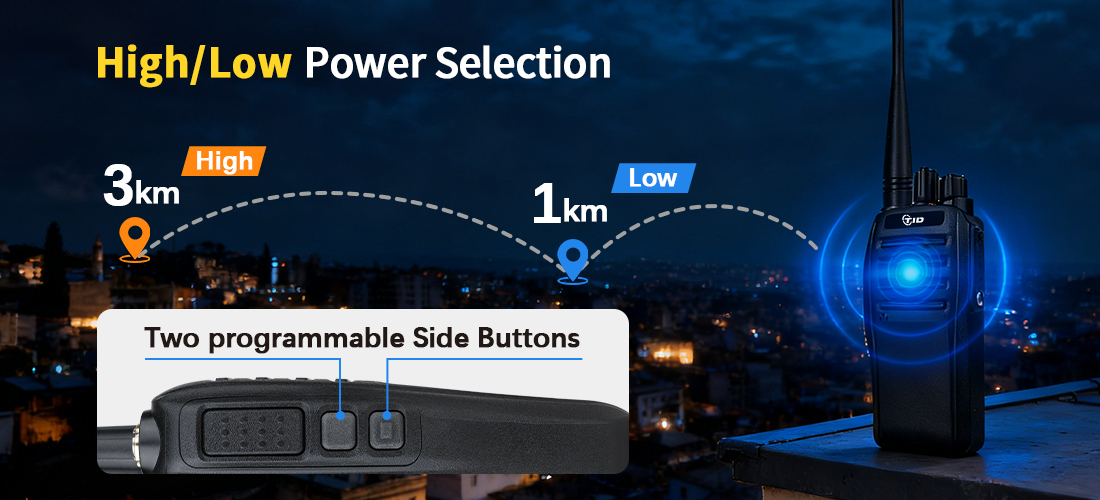

Carrier output power |
|
≤10W |
| Modulation limit |
|
W≤5kHZ, N≤2.5kHZ |
|
Audio distortion |
|
≤5% |
| Transmitting current |
|
≤2500mA |
|
Modulation characteristics |
|
+1 ~-3dB（0.3~3khz） |
| Adjacent channel power |
|
≥70dB |
|
Spurious RF component |
|
≤-36dBM |
|
Receiver |
||||||
| Receiving Sensitivity |
|
≤0.25μV |
|
Audio output power |
|
＞0.7W |
| Audio distortion |
|
≤5% |
|
Audio response |
|
+1~-3dB（0.3~3khz） |
| Co-channel Rejection |
|
≥-8dB |
|
Adjacent Channel Selectivity |
|
≥70dB |
| Intermodulation Imminity |
|
≥65 dB |
|
Spurious response immunity |
|
≥70 dB |
