General |
||||||

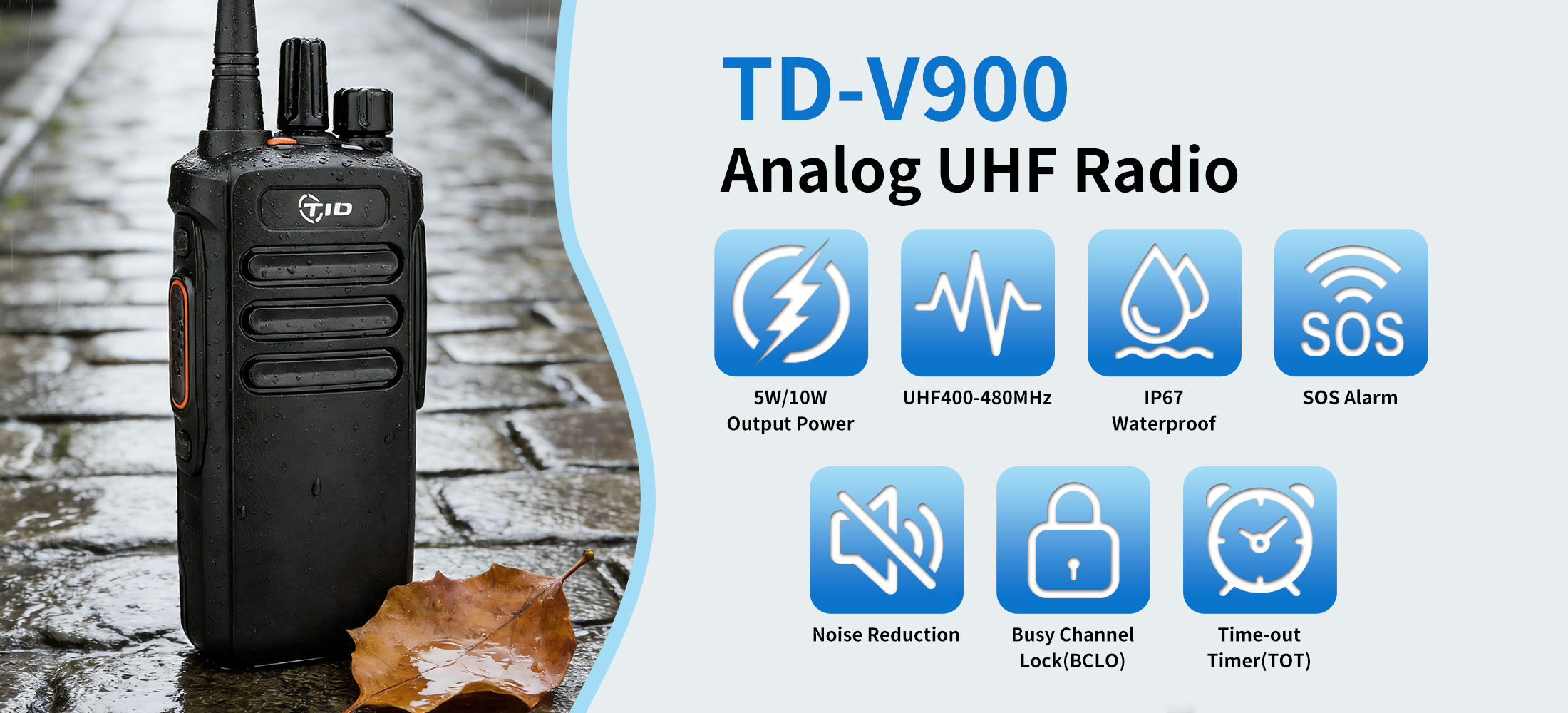

| Frequency Range |
|
UHF:400-480MHz |
|
Channel Capacity |
|
16 |
| Channel Spacing |
|
12.5/25.0KHz |
|
Operating Voltage |
|
7.4V |

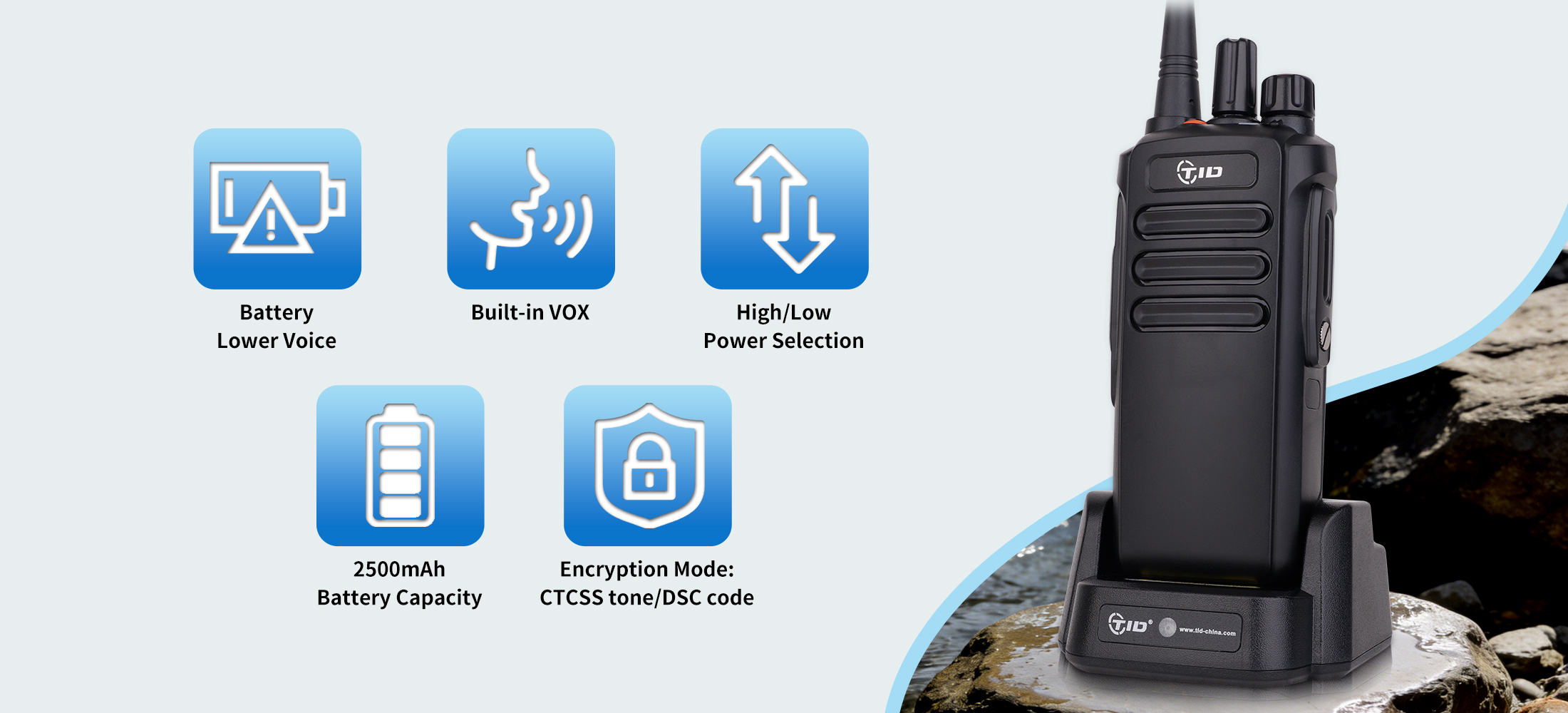

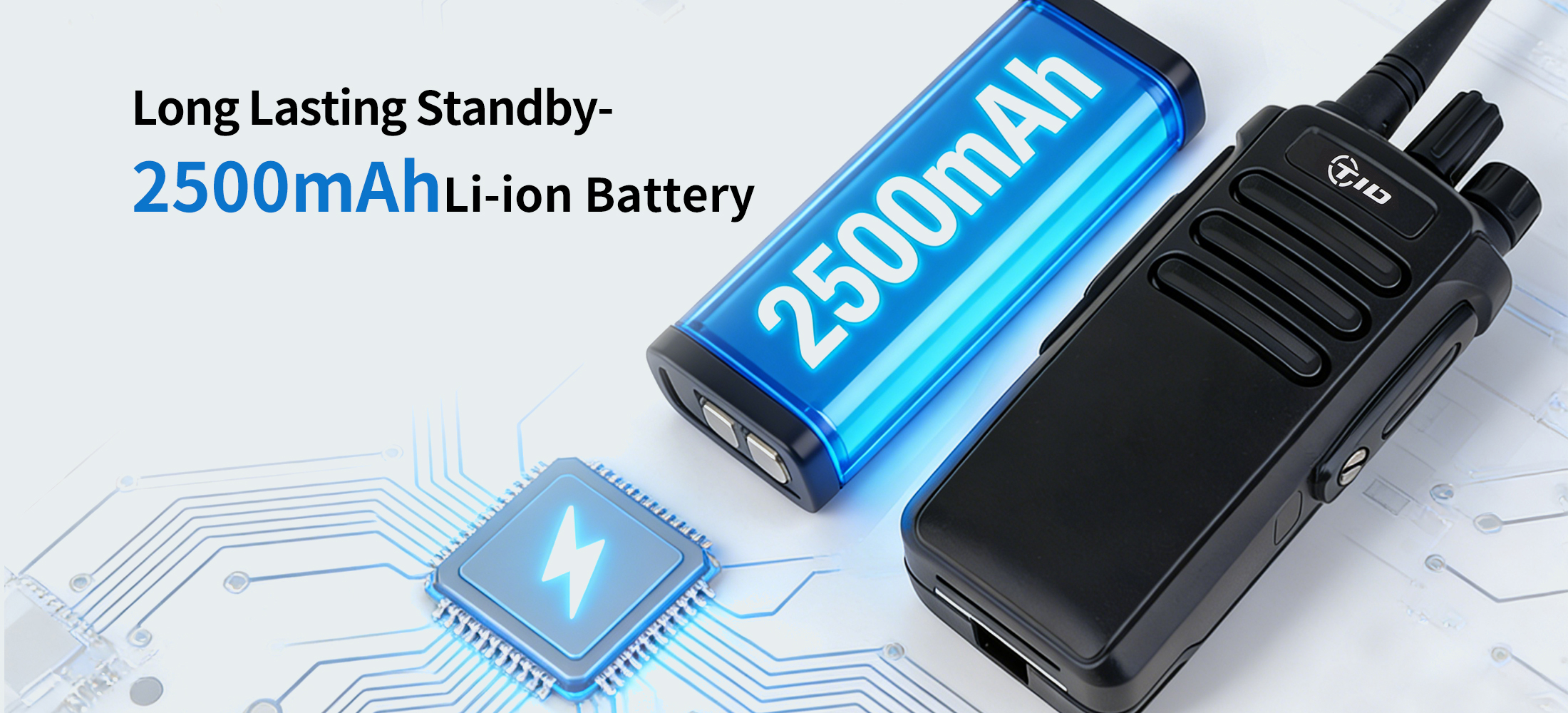

| Battery Capacity |
|
2500mAh(Li-ion) |
|
Battery Life (5-5-90 Duty Cycle) |
|
About 48 hours |
| Frequency Stability |
|
±2.5PPM |
|
Operating Temperature |
|
-20℃~+60℃ |

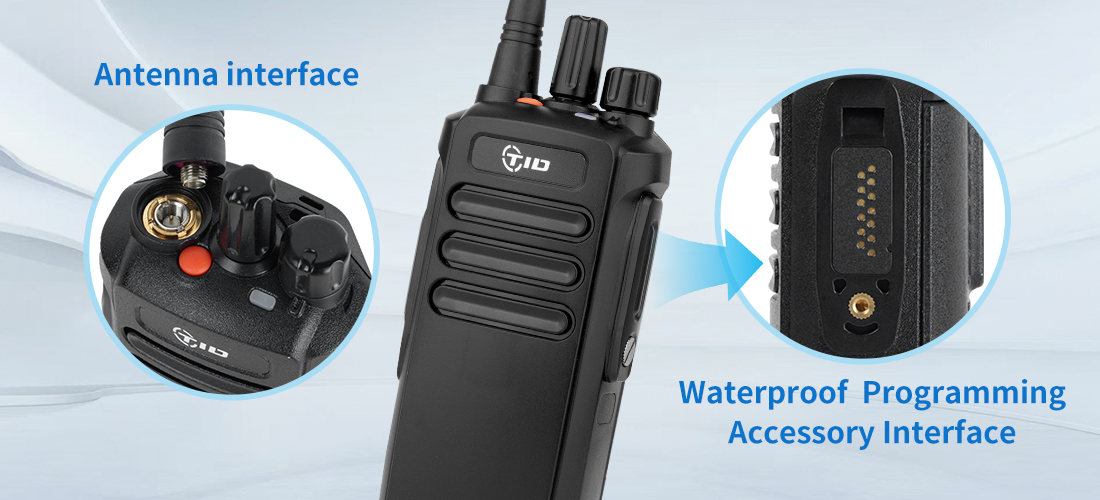

| Antenna Impedance |
|
50Ω |
|
Weight (With Antenna & Battery) |
|
262g |
| Dimension (HxWxD) (Without Antenna) |
|
135*60*40mm |
|
|||
|
Transmitter |
||||||
| Carrier frequency tolerance |
|
±2.5PM |
|

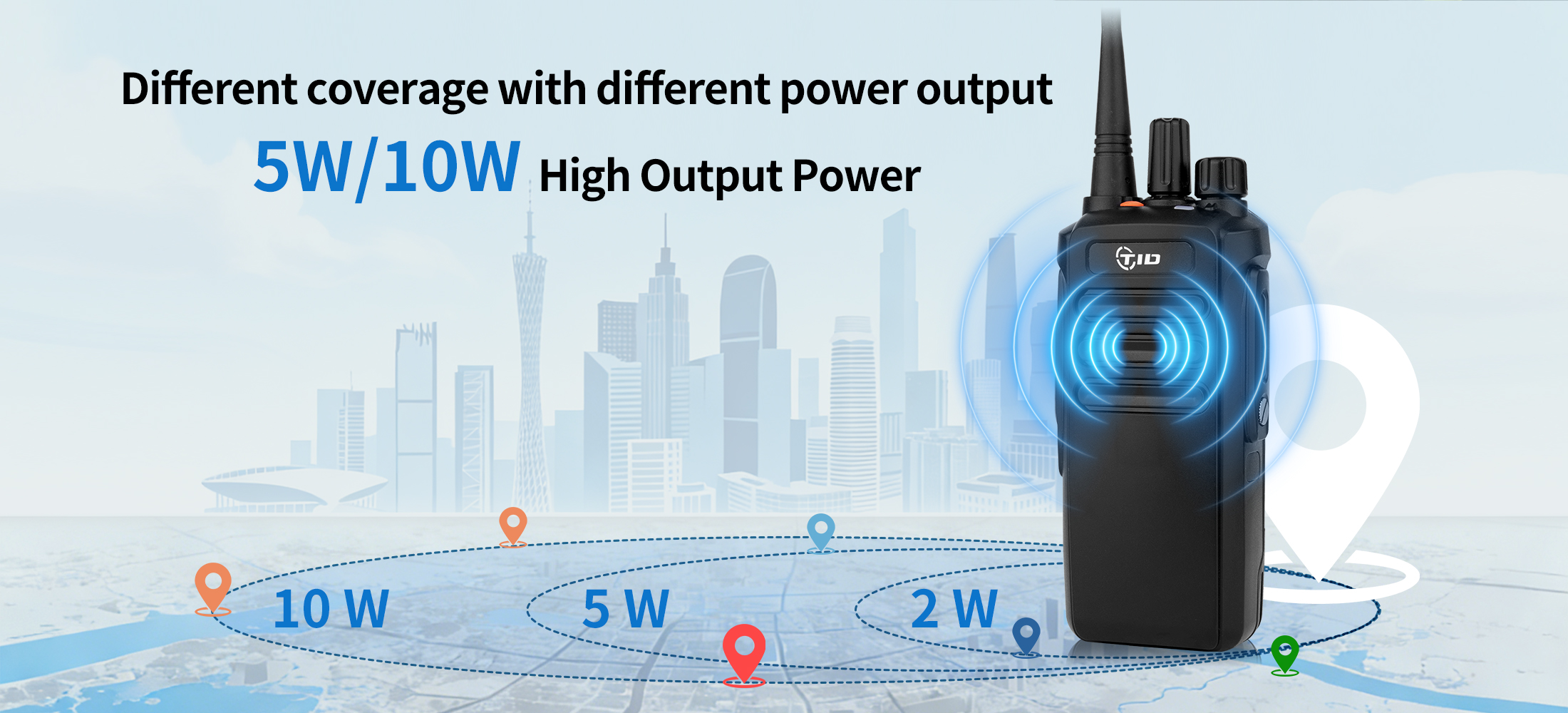

Carrier output power |
|
≤10W |
| Modulation limit |
|
W≤5kHZ, N≤2.5kHZ |
|
Audio Distortion |
|
≤5% |
| Transmitting current |
|
≤1500mA |
|
Modulation characteristics |
|
+1 ~-3dB（0.3~3khz） |
| Adjacent channel power |
|
≥70dB |
|
Spurious RF component |
|
≤-36dBM |
|
Receiver |
||||||
| Receiving Sensitivity |
|
≤0.25μV |
|
Audio output power |
|
＞2W |
| Audio distortion |
|
≤5% |
|
Audio response |
|
+1~-3dB（0.3~3khz） |
| Co-channel suppression |
|
45/40dB |
|
Adjacent channel selectivity |
|
2W |
| Intermodulation imminity |
|
≤5% |
|
|||
