General |
||||||
| Frequency Range |
|
PMR446 |
|
Channel Capacity |
|
16 |
| Channel Spacing |
|
W: 25 kHz ; N: 12.5 kHz |
|
Operating Voltage |
|
DC3.7V |

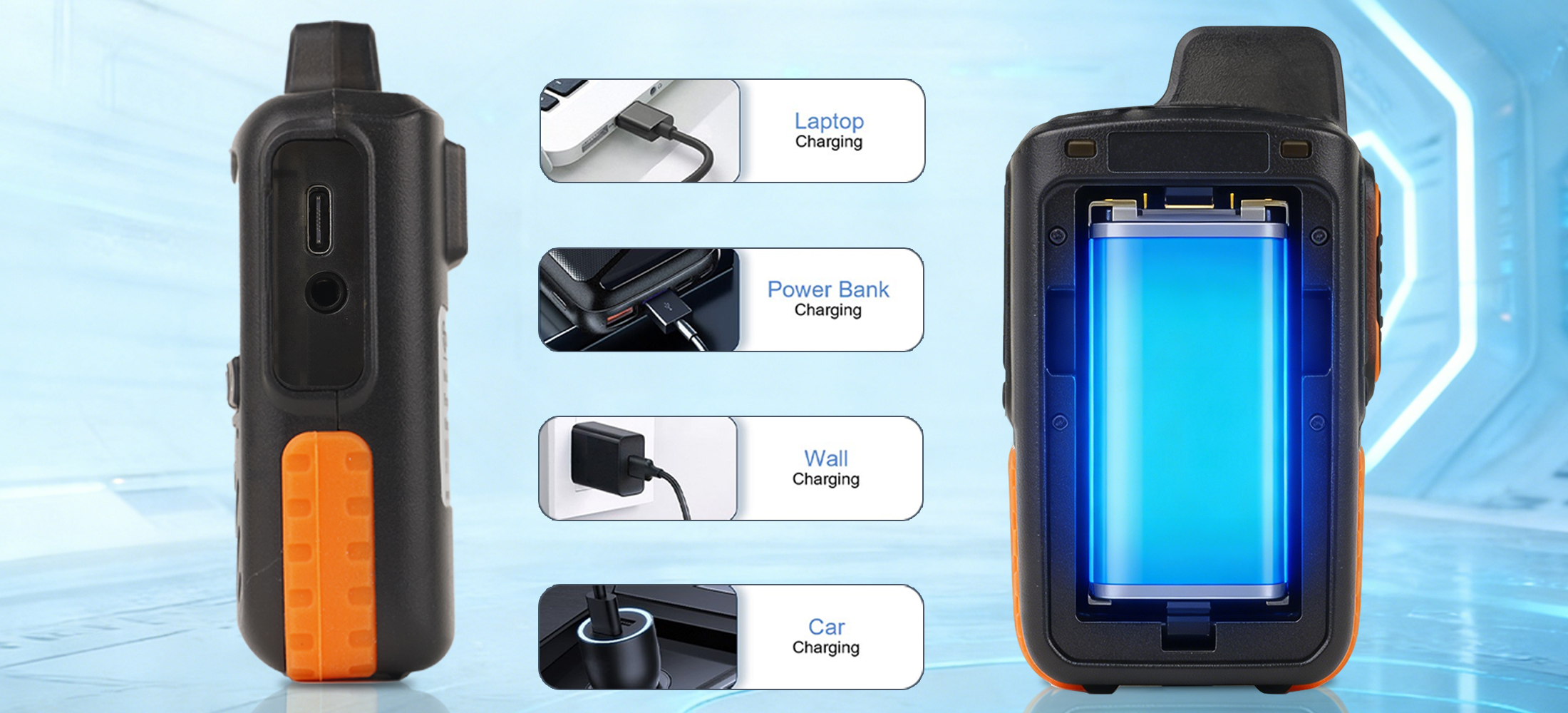

| Battery Capacity |
|
2000mAh Li-ion |
|
Standby Current |
|
20 mA |
| Frequency Stability |
|
±2.5PPM |
|
Operating Temperature |
|
-20℃~+60℃ |
| Antenna Impedance |
|
50Ω |
|

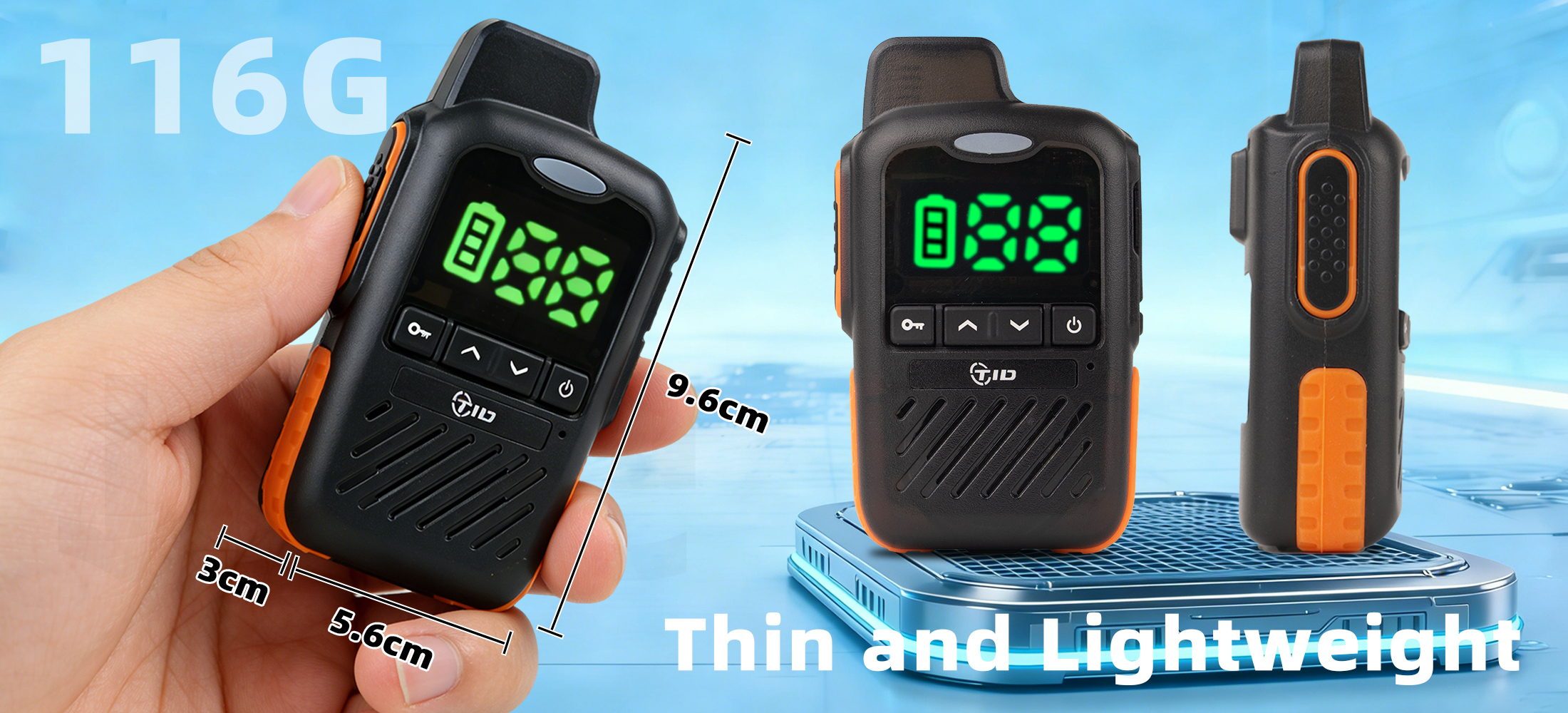

Weight |
|
116g |
| Dimension |
|
95x56x31mm |
|
|||
|
Transmitter |
||||||
| Carrier Frequency Tolerance |
|
±2.5PPM |
|

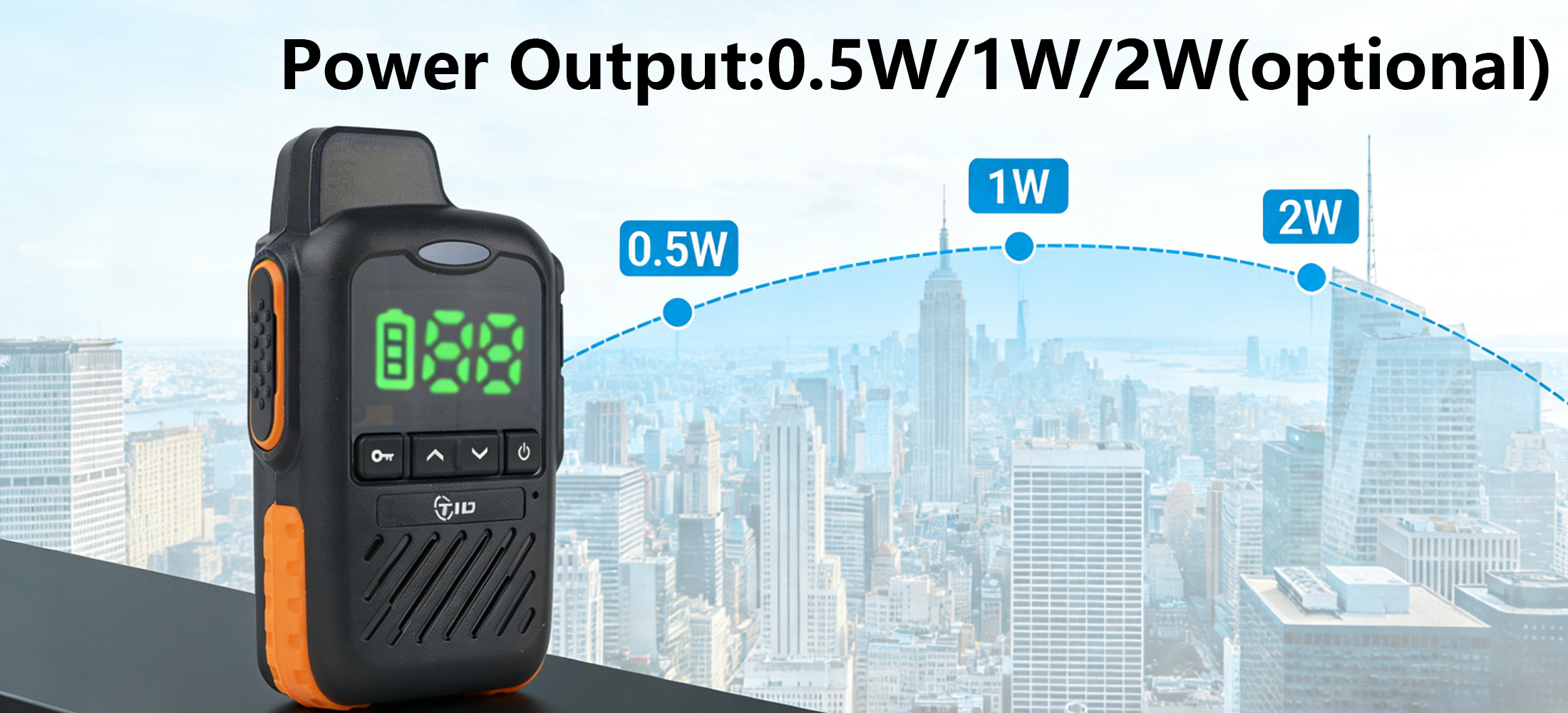

Carrier Output Power |
|
≤2W |
| Modulation Limiting |
|
W≤5kHZ N≤2.5kHZ |
|
Modulation Characteristics |
|
+1~-3dB(0.3~3khz) |
| Emissiom Current |
|
≤1300mA |
|
Audio Distortion |
|
≤5% |
| Adjacent Channel Power |
|
≥60dB |
|
Spurious RF Components |
|
≤-30dBM |
| Occupying Bandwidth |
|
16kHZ |
|
|||
|
Receiver |
||||||
| Receive Sensitivity |
|
≤0.25uV |
|
Adjacent Channel Selectivity |
|
≥65dB |
| Intermodulation Immunity |
|
≥65dB |
|
Spurious Response Immunity |
|
≥60dB |
| Blocking Characteristic |
|
≥84dB |
|
Audio Power Output |
|
＞0.5W |
| Audio Response |
|
+1~-3dB(0.3~3khz) |
|
Audio Distortion |
|
≤5% |
