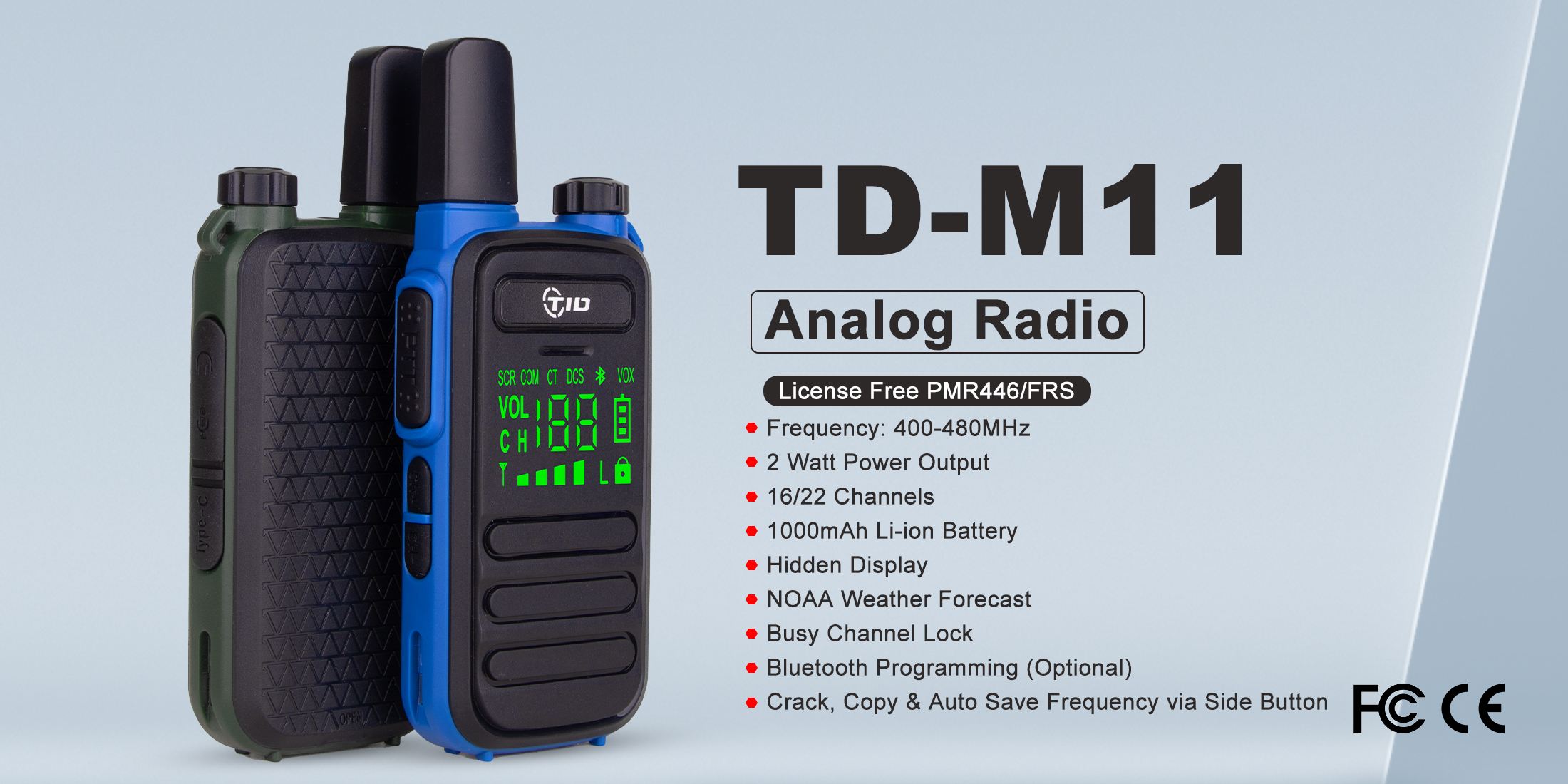

General Specification |
||||||

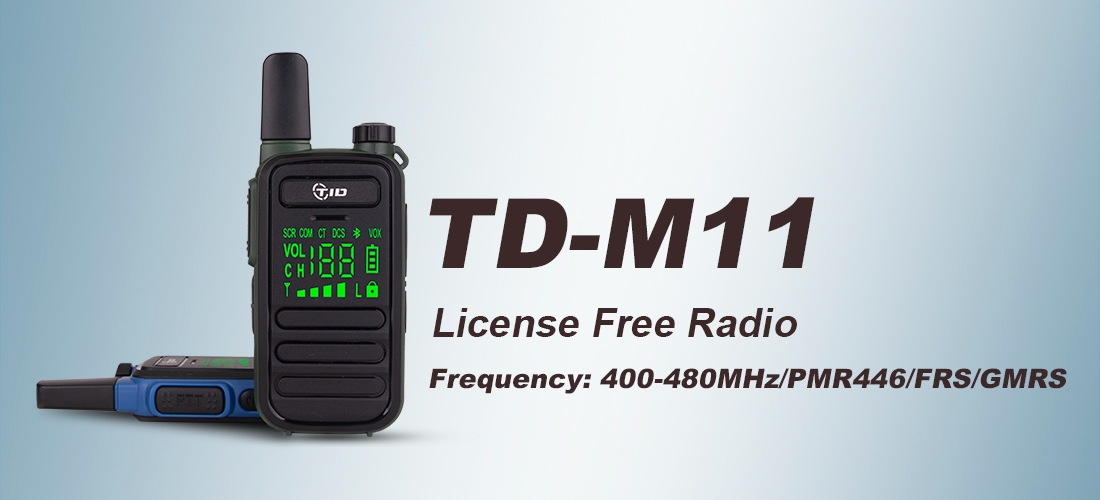

| Frequency Range |
|
FRS/GMRS/PMR446/UHF:400-480MHz |
|
Channel Capacity |
|
16/22(Optinoal) |
| Channel Spacing |
|
W: 25 kHZ; N: 12.5 kHZ |
|
Operating Voltage |
|
DC 3.6V |

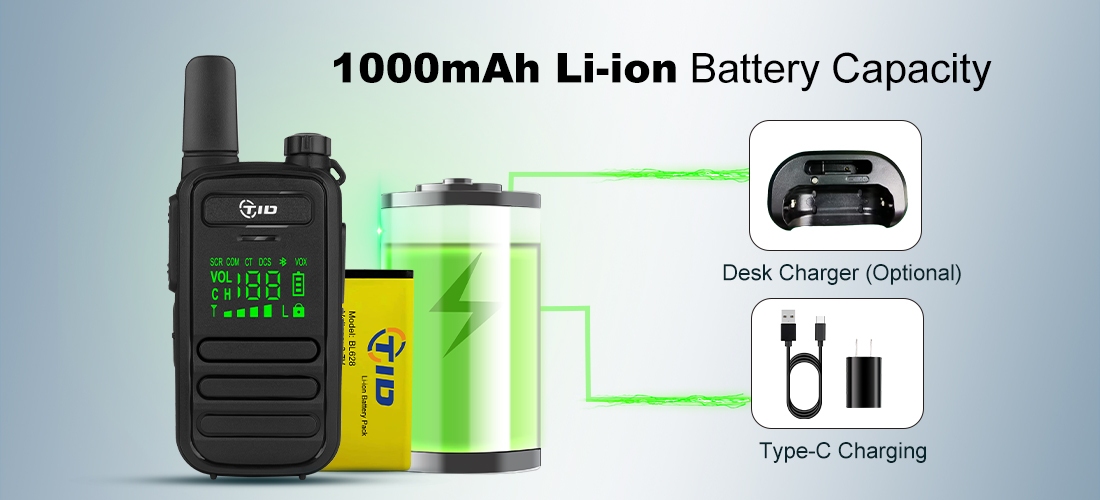

| Battery Capacity |
|
1000mAh Li-ion |
|
Operating Temperature |
|
-20℃~+60℃ |
| Frequency Stability |
|
± 2.5PPM |
|
Antenna Impedance |
|
50Ω |
| Standby Current |
|
≤20mA |
|

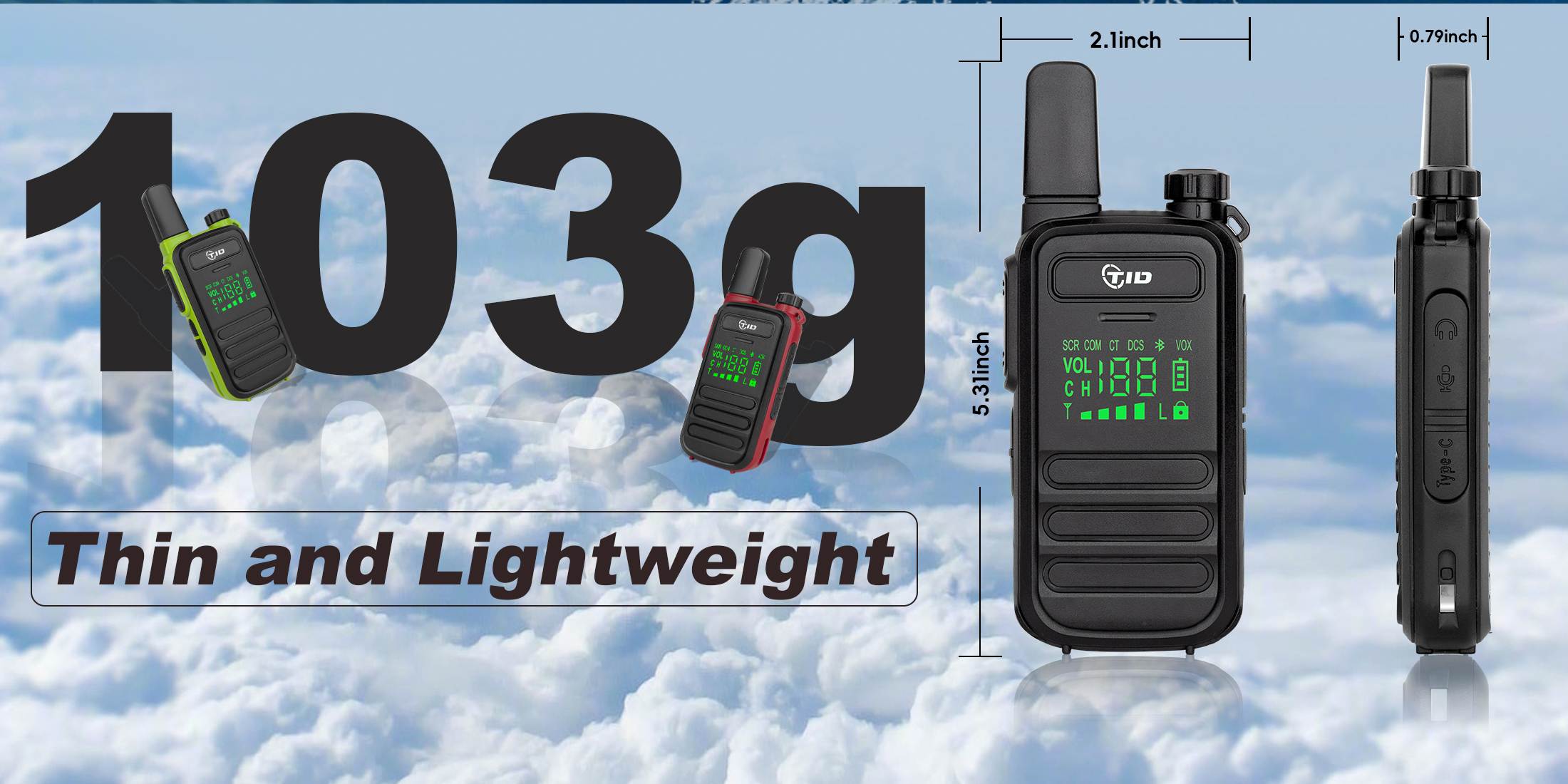

Weight (With Antenna and Battery) |
|
103g |
| Dimension (HxWxD) (With Antenna) |
|
135x55x20mm |
|
|||
|
Transmitter |
||||||
| Carrier Frequency Tolerance |
|
± 2.5PPM |
|
Carrier Output Power |
|
≤2W |
| Modulation Limiting |
|
W: ≤5kHZ; N: ≤2.5 kHZ |
|
Modulation Characteristics |
|
+1 ~- 3dB(0.3~3khz) |
| Emission Current |
|
≤1200mA |
|
Audio Distortion |
|
≤5% |
| Adjacent Channel Power |
|
≥70dB |
|
Spurious RF Components |
|
≤-36dBM |
| Occupying Bandwidth |
|
16kHZ |
|
|||
|
Receiver |
||||||
| Receive Sensitivity |
|
≤0.25μV |
|
Audio Power Output |
|
≤1W |
| Audio Distortion |
|
≤5% |
|
Audio Response |
|
+1 ~- 3dB(0.3~3khz) |
| Co-channel Rejection |
|
≥ -8 dB |
|
Adjacent Channel Selectivity |
|
≥70dB |
| Intermodulation Immunity |
|
≥65dB |
|
Spurious Response Immunity |
|
≥70dB |
| Blocking Characteristics |
|
≥84dB |
|
|||
