General Specification |
||||||

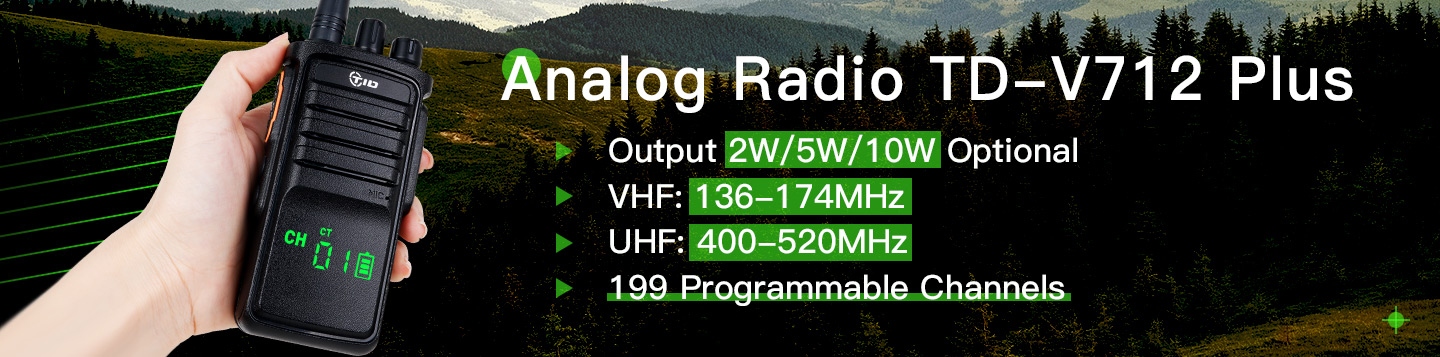

| Frequency Range |
|
VHF:136-174MHz,UHF:400-520MHz |
|
Channel Capacity |
|
199 |
| Channel Spacing |
|
12.5/25.0KHz |
|
Operating Voltage |
|
7.4V |

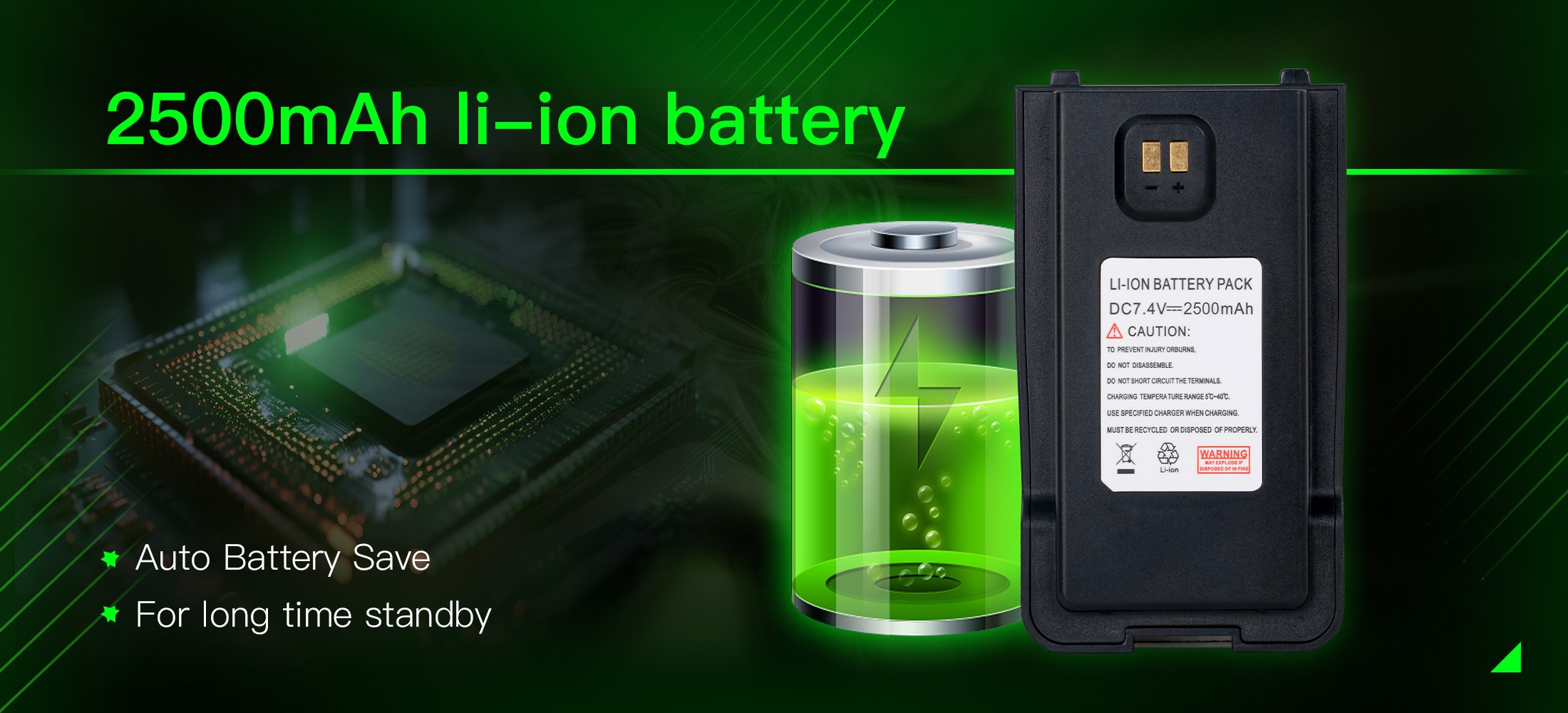

| Battery Capacity |
|
2500mAh (Li-ion) |
|
Battery Life (5-5-90 Duty Cycle) |
|
About 20 hours |
| Frequency Stability |
|
±2.5PPM |
|
Operating Temperature |
|
-20℃~+60℃ |
| Antenna Impedance |
|
50Ω |
|
Weight (with antenna and battery) |
|
226g |
| Dimension (HxWxD) (Without Antenna) |
|
134x62x37mm |
|
|||
|
Transmitter |
||||||
| RF Output Power |
|
2W/5W/10W |
|
Type of modulation |
|
F3E |
| Spurious and Harmonics |
|
-36dBm<1GHz; -30dBm>1GHz |
|
FM Noise |
|
45/40dB |
| Audio Distortion |
|
≤5% |
|
Modulation Limiting |
|
±2.5Hz@12.5KHz； ±5.0Hz@25KHz |
| Audio Response |
|
+1 to -3dB |
|
|||
|
Receiver |
||||||
| Sensitivity |
|
≤0.25μV |
|
Adjacent Channel Selectivity |
|
≥70dB |
| Intermodulation |
|
65dB |
|
Spurious Response Rejection |
|
≥70dB |
| S/N |
|
45/40dB |
|
Audio Power Output |
|
＞600mW |
| Audio Distortion |
|
≤5% |
|
|||
