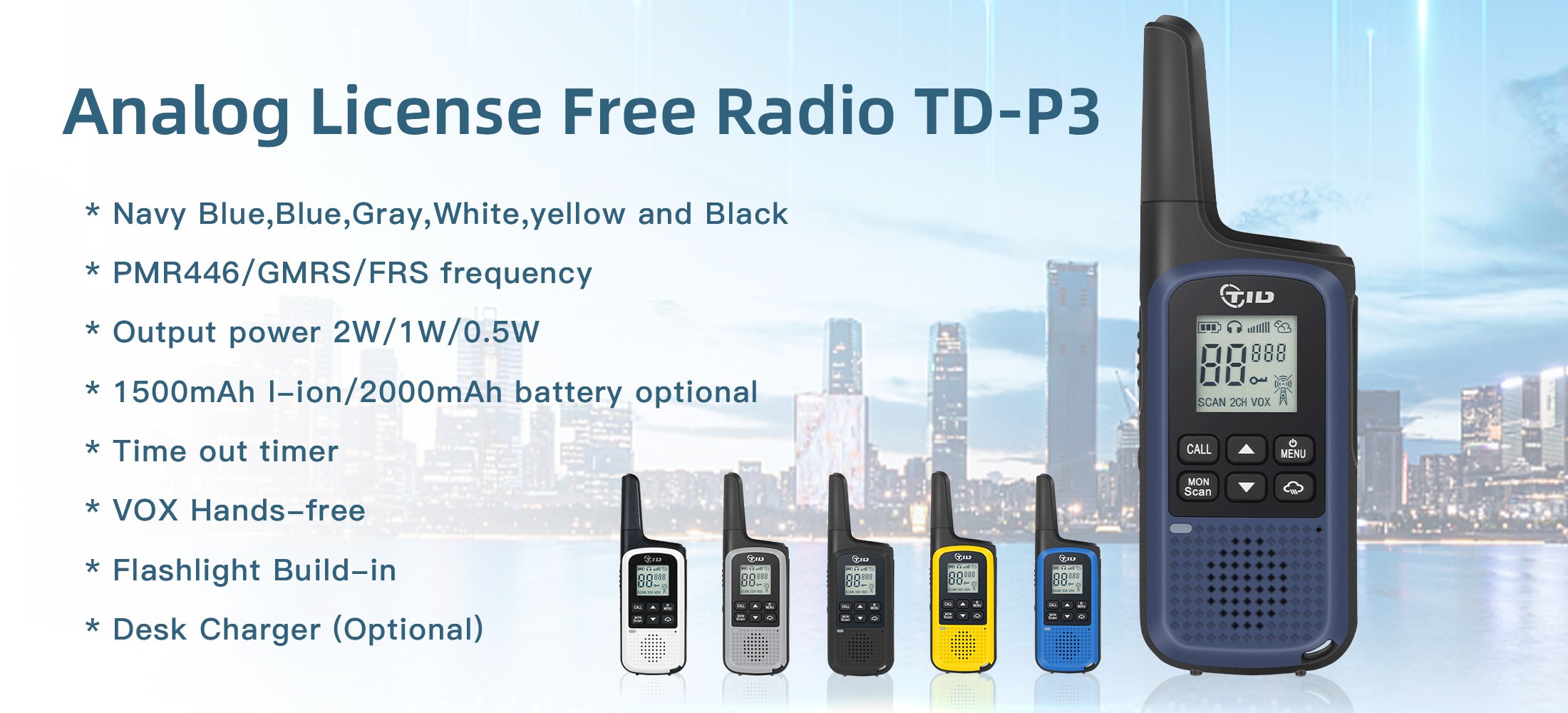

General Specification |
||||||
| Frequency Range |
|
FRS/GMRS/PMR446 Standard |
|
Channel Capacity |
|
22/16 |
| Channel Spacing |
|
12.5/25.0KHz |
|
Operating Voltage |
|
DC7.4V |

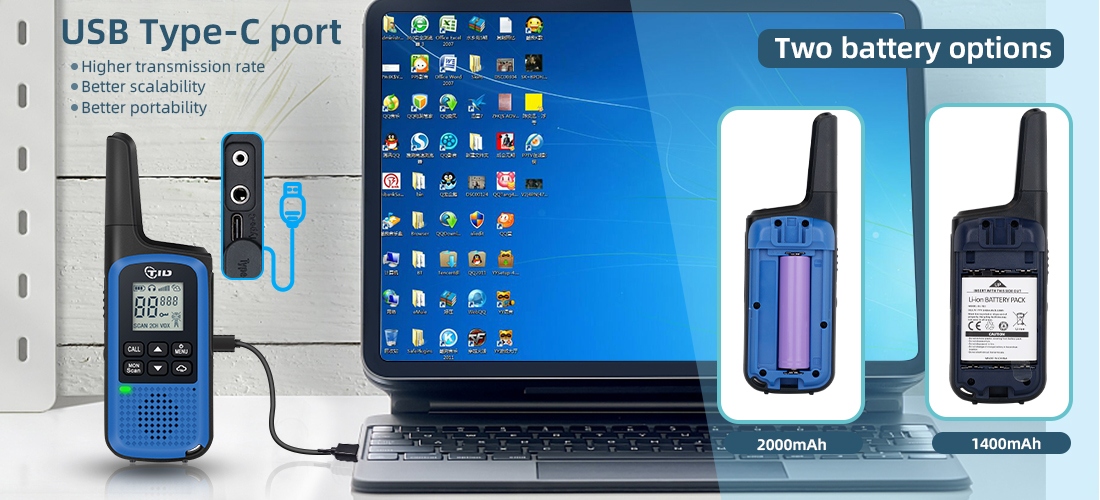

| Battery Capacity |
|
1500mAh (Li-ion) or 2000mAh (Li-ion) |
|
Battery Life (5-5-90 Duty Cycle) |
|
About 15 hours |
| Frequency Stability |
|
±2.5PPM |
|
Operating Temperature |
|
-20℃~+60℃ |
| Antenna Impedance |
|
50Ω |
|
Weight (with antenna and battery) |
|
190g |
| Dimension (HxWxD) (Without Antenna) |
|
100x53x30mm |
|
|||
|
Transmitter |
||||||
| RF Output Power |
|
2.0W/1.0W/0.5W |
|
Type of modulation |
|
F3E |
| Spurious and Harmonics |
|
-36dBm<1GHz; -30dBm>1GHz |
|
FM Noise |
|
40/45dB |
| Audio Distortion |
|
≤5% |
|
Modulation Limiting |
|
±2.5@12.5KHz； ±5.0@25KHz |
| Audio Response |
|
+1 to -3dB |
|
|||
|
Receiver |
||||||
| Sensitivity |
|
≤0.30/0.20μV |
|
Adjacent Channel Selectivity |
|
60dB |
| Intermodulation |
|
60dB |
|
Spurious Response Rejection |
|
65dB |
| S/N |
|
40/45dB |
|
Audio Power Output |
|
500mW |
| Audio Distortion |
|
≤5% |
|
|||
