General |
||||||
| Frequency Range |
|
136-174MHz/350-390MHz/ 403-470MHz/470-520MHz |
|
Channel Capacity |
|
16 |
| Channel Spacing |
|
12.5/25.0 KHz |
|
Operation Voltage |
|
7.4V LI-ION |
| Battery Capacity |
|
1200mAh (Li-ion) |
|
Battery life (5-5-90 Working Cycles) |
|
12 Hours |
| Frequency Stability |
|
±2.5 PPM |
|
Operating Temperature |
|
-20℃~+60℃ |

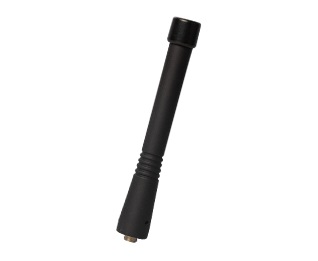

| Antenna Impedance |
|
50Ω |
|
Dimensions (HxWxD)(Without Antenna) |
|
100 x 55.5 x 31mm |
| Weight (Including Antenna And Battery) |
|
200g |
|
|||
|
Transmitter |
||||||
| RF Output Power |
|
VHF: 5.0W/1.0W UHF: 4.0W/1.0W |
|
Modulation Type |
|
F3E |
| Spurious and Harmonics |
|
-36dBm<1GHz; -30dBm> 1GHz |
|
FM Noise |
|
45dB |
| Audio Distortion |
|
≤5% |
|
Modulation Limiting |
|
±2.5@12.5KHz； ±5.0@25KHz |
| Audio Response |
|
+1to-3dB |
|
|||
