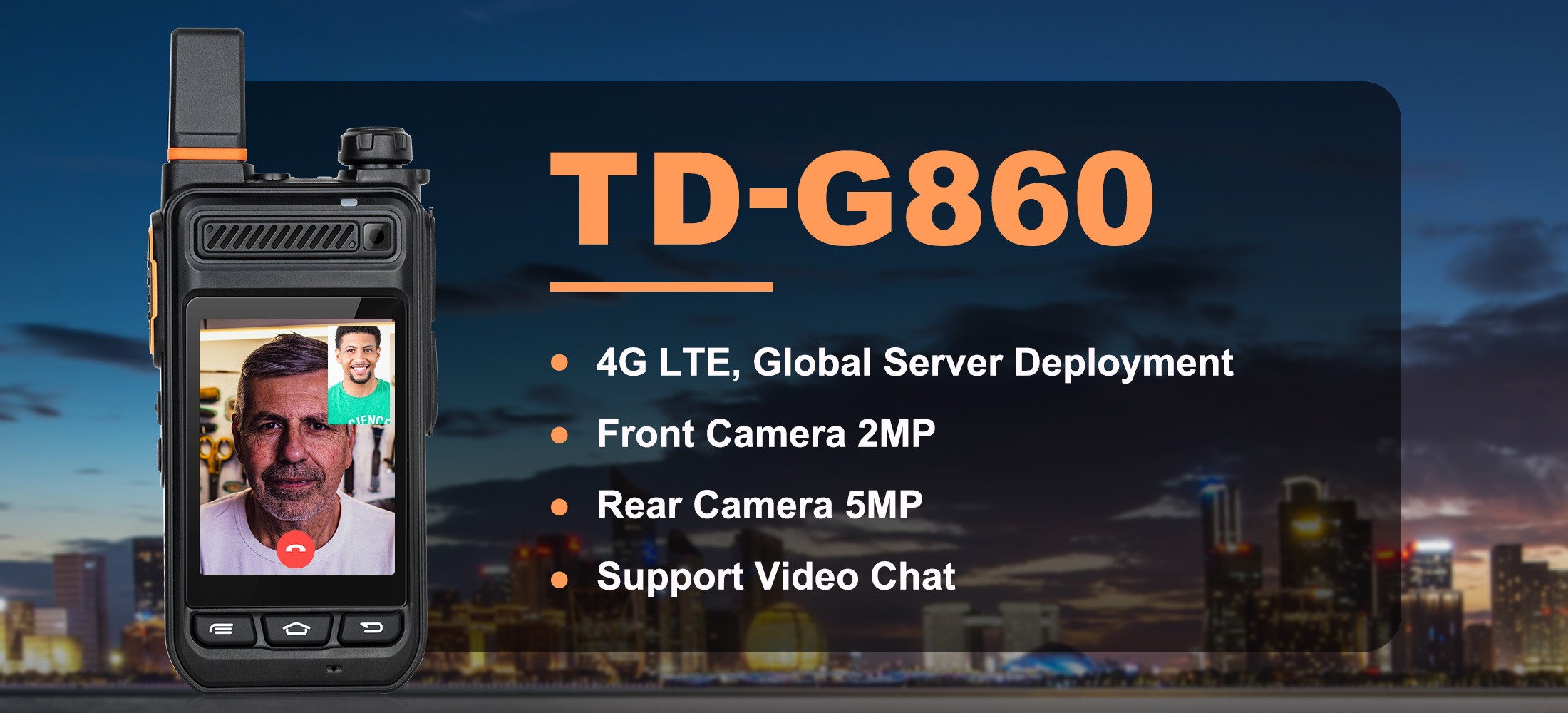

TD-G860

contact us >

Technical specifications










Technical specifications
System
Android 7.1
Platform

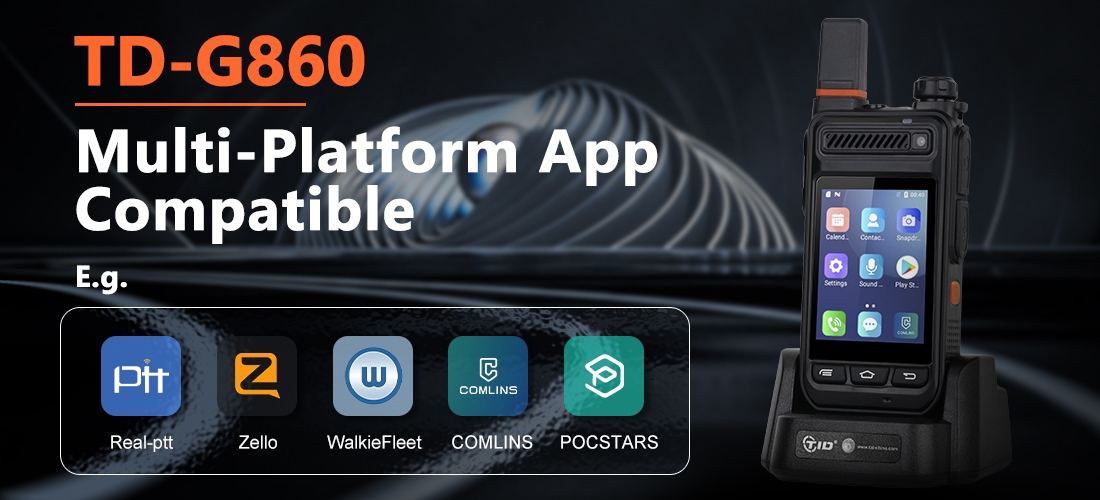

Comlins/Zello/Walkiefleet/Real PTT/POC Star/Multi Platform APP)
Network Version A
LTE FDD:B1/B3/B5/B8
LTE TDD:B38/B39/B40/B41
TD-SCDMA:B34/B39
EVDO/CDMA:BC0 < br/> WCDMA:B1/B8
GSM:900/1800MHz

Network Version B
FDD LTE:B1/B3/B5/B7/B8/B20
TDD LTE:B38/B40/B41
WCDMA:B1/B5/B8
GSM:850/900/1800/1900MHz
Network Version C
LTE FDD:B2/B4/B5/B7/B12/B13/B25/B26
WCDMA:B1/B2/B4/B5/B8
GSM:850/1900MHz

Network Version D
LTE FDD:B1/B3/B5/B7/B8/B28
LTE TDD:B40
WCDMA:B1/B2/B5/B8
GSM:850/900/1800/1900MHz
Network Version E
LTE FDD:B1/B2/B3/B5/B7/B8/B20/B28A
LTE TDD:B38/B41
WCDMA:B1/B2/B5/B8
GSM: 850/900/1800/1900MHz

Module
Quectel SC20-CE/SC20-E/SC20-A/SC20-AU/SC20-EU
Chipset
Qualcomm MSM8909
WLAN
A Network Version: 2.4G/5G,802.11 a/b/g/n, B/C/D/E Network Version: 2.4G/5G,802.11 a/b/g/n
Bluetooth
BT2.1+EDR/3.0/4.1/4.2LE
Positioning System
GPS/GLONASS/BeiDou
LTE
LTE FDD: Max 150Mbps(DL)/Max 50Mbps(UL)
LTE TDD: Max 130Mbps(DL)/Max 35Mbps(UL)

UMTS
DC-HSDPA: Max 42Mbps (DL)
HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL/UL)

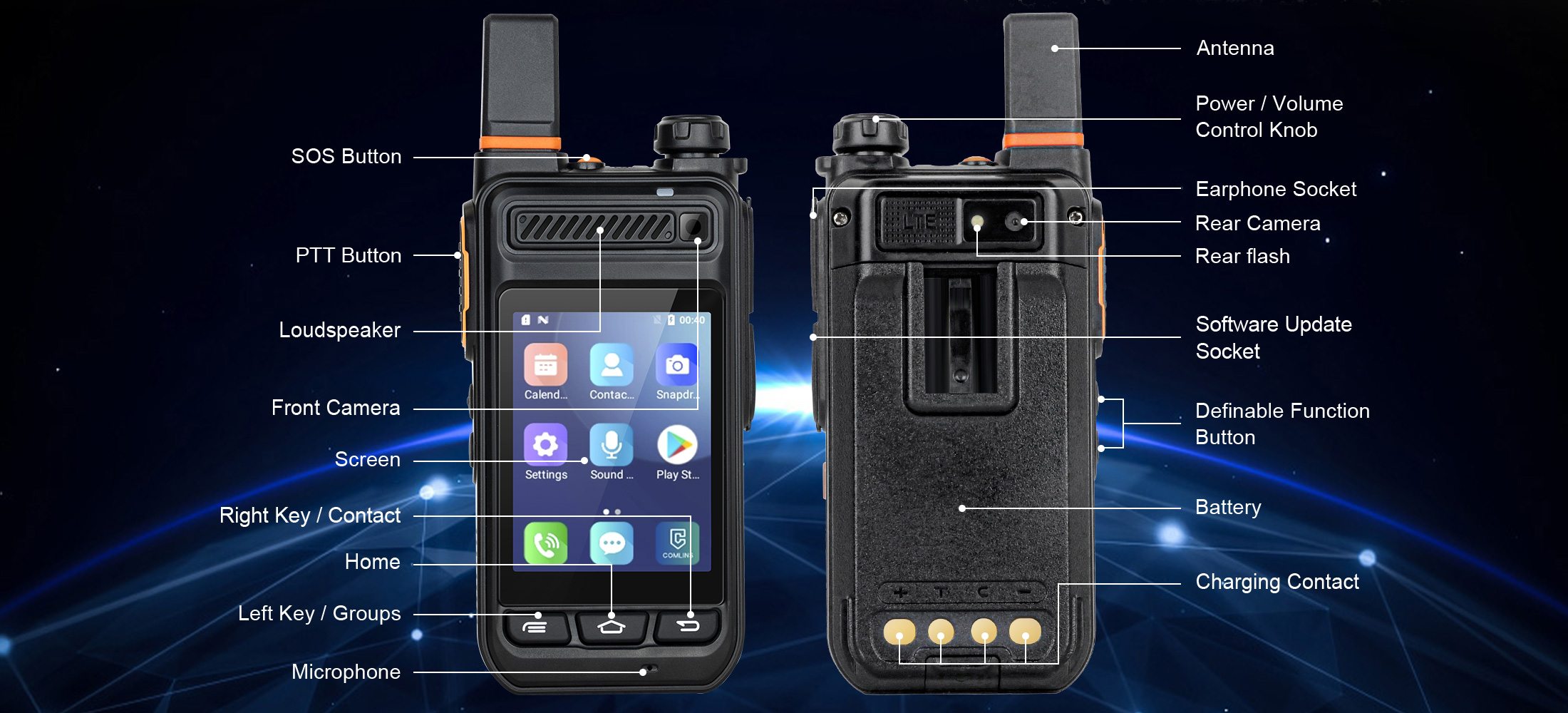

Ports
Micro-B/3.5mm Audio Jack/USB Charger Interface
Memory
RAM: 1GB/ROM: 8GB

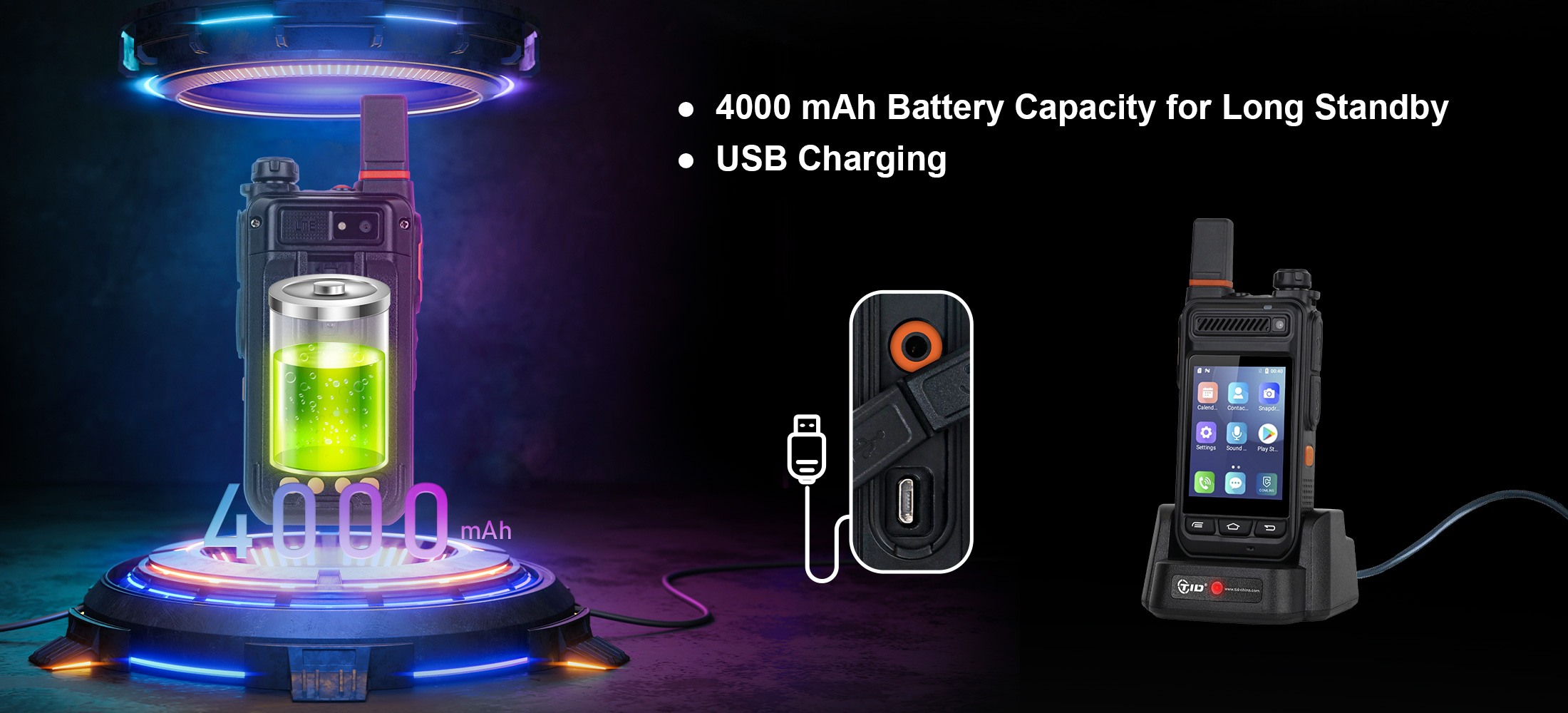

Battery
4000mAh(Li-ion)

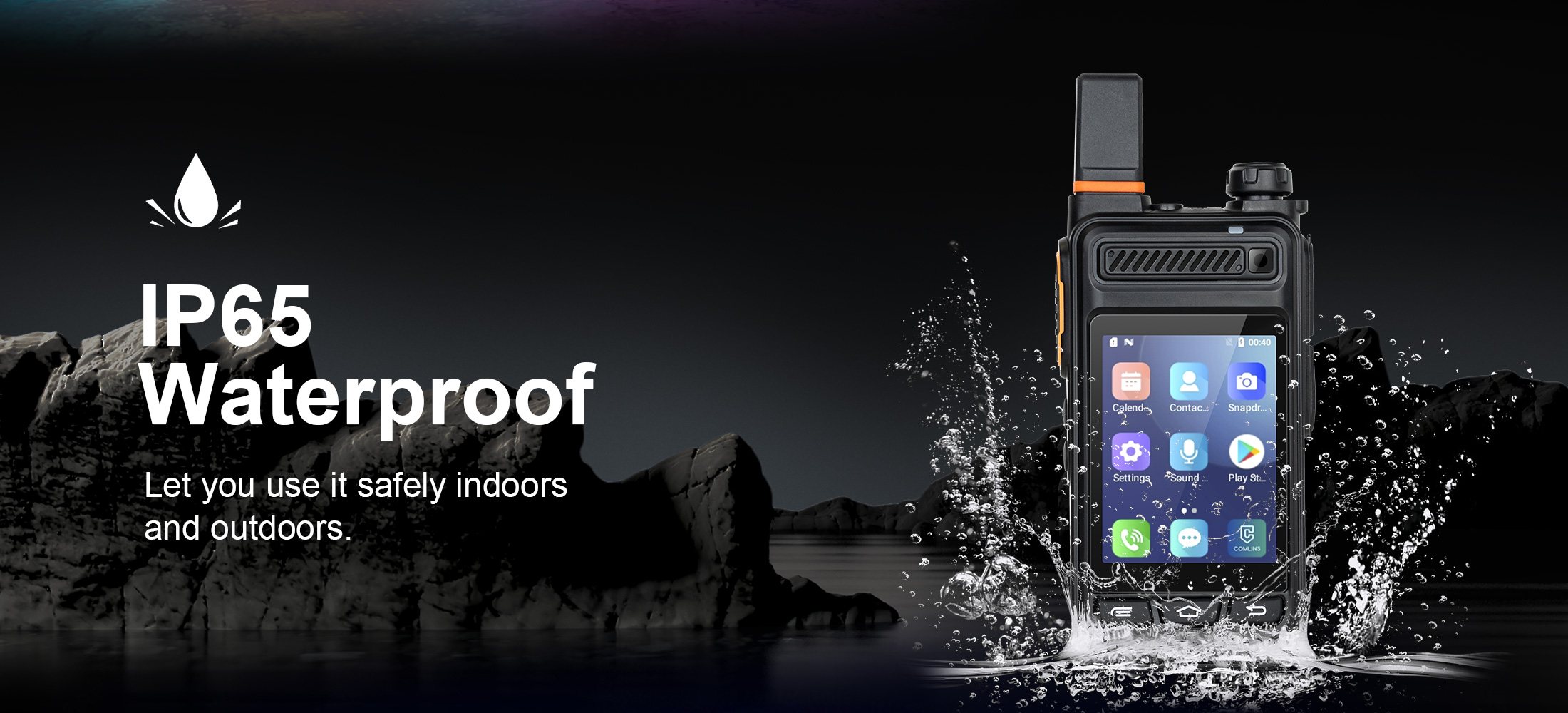

Dust and Waterproof
IP65
Audio Power Output
2W

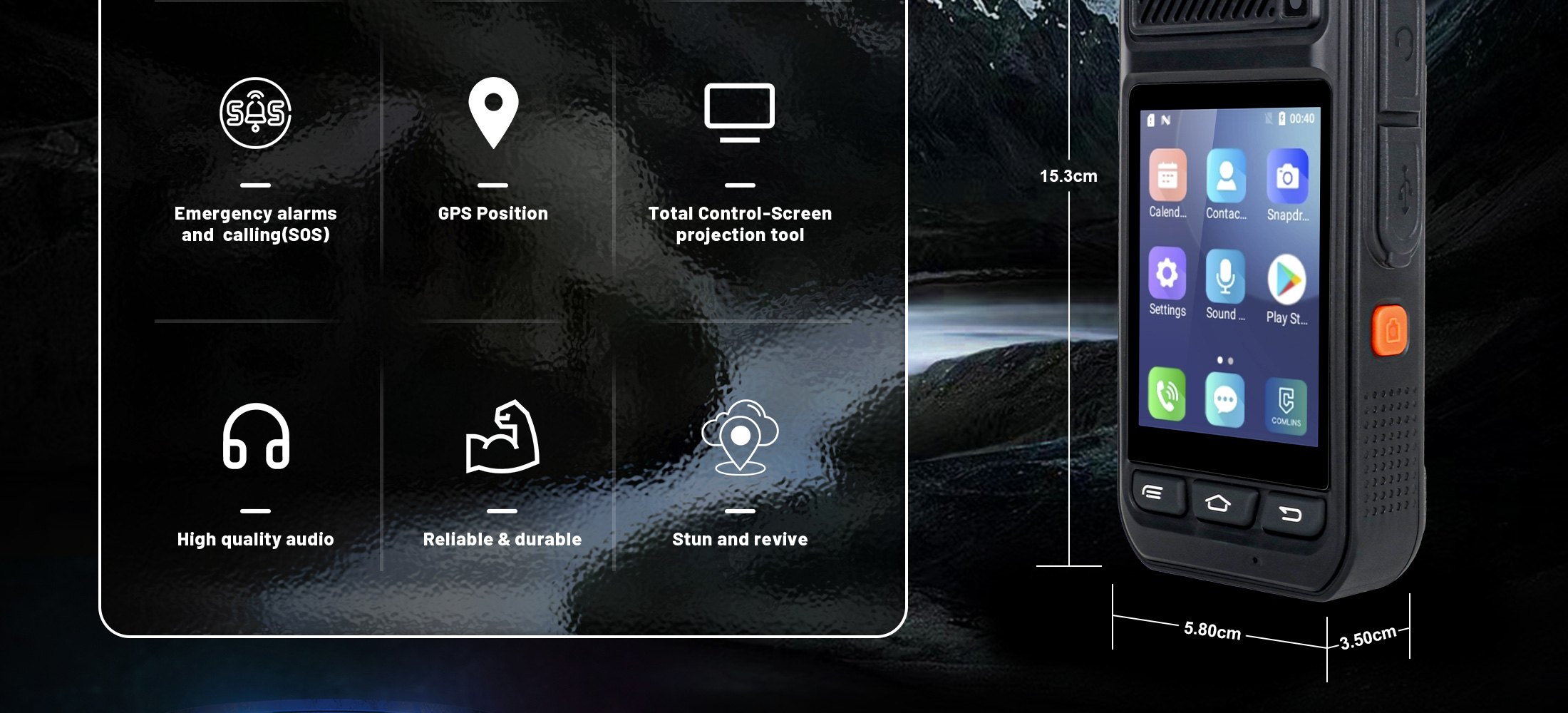

Dimensions
115*59*35mm (Without Antenna)
Weight
230g (With Battery and Antenna)
Operating Voltage
3.5V~4.2V,3.8V Typical Value

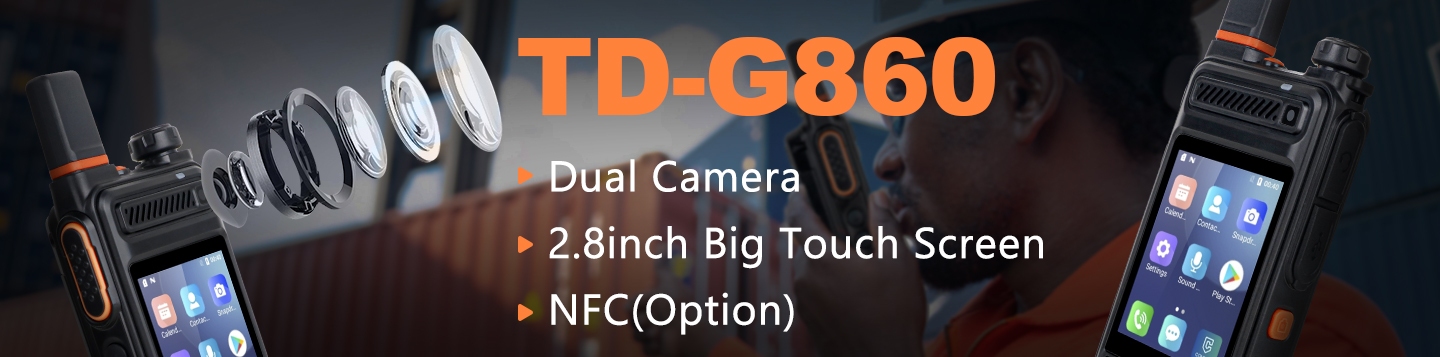

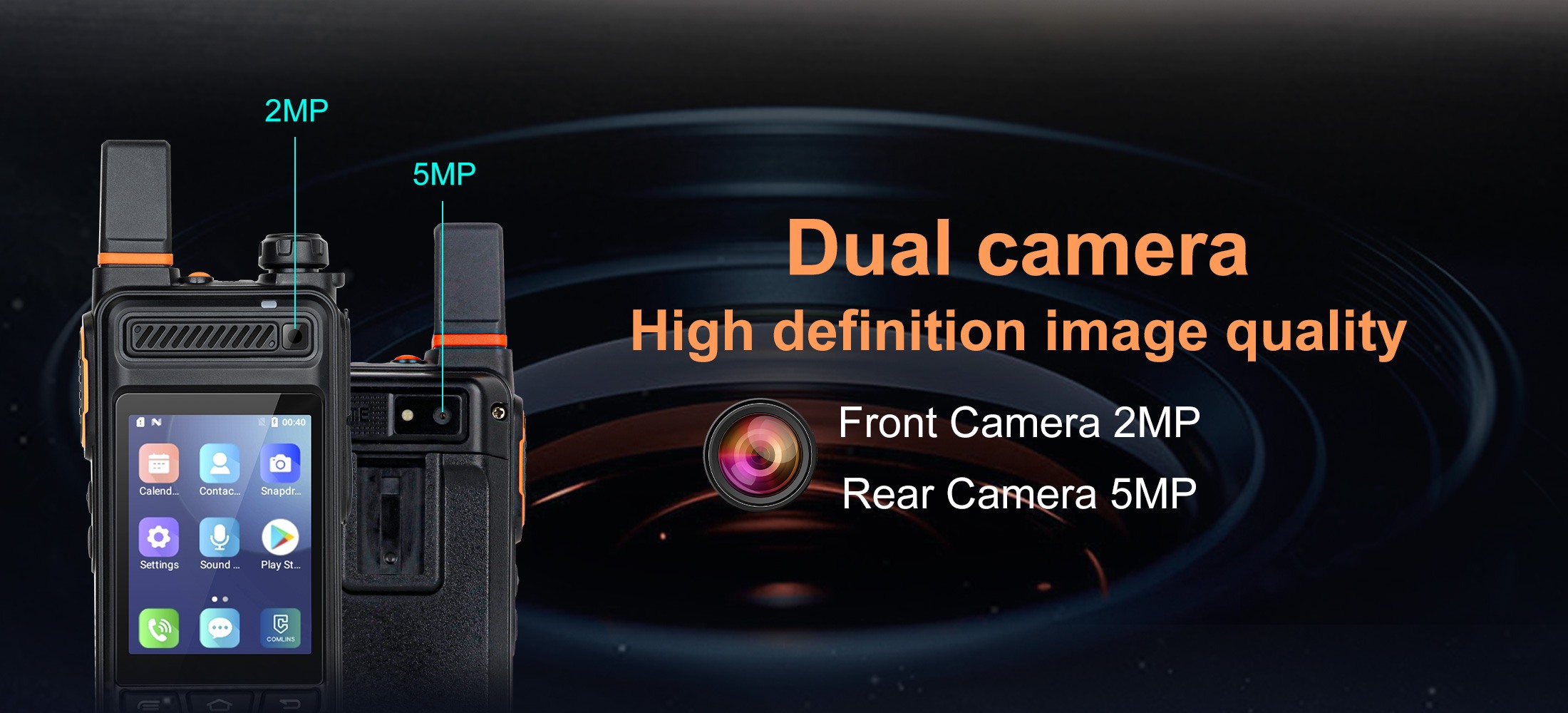

Camera
Front Camera 2 Megapixel; Rear Camera 5 Megapixel

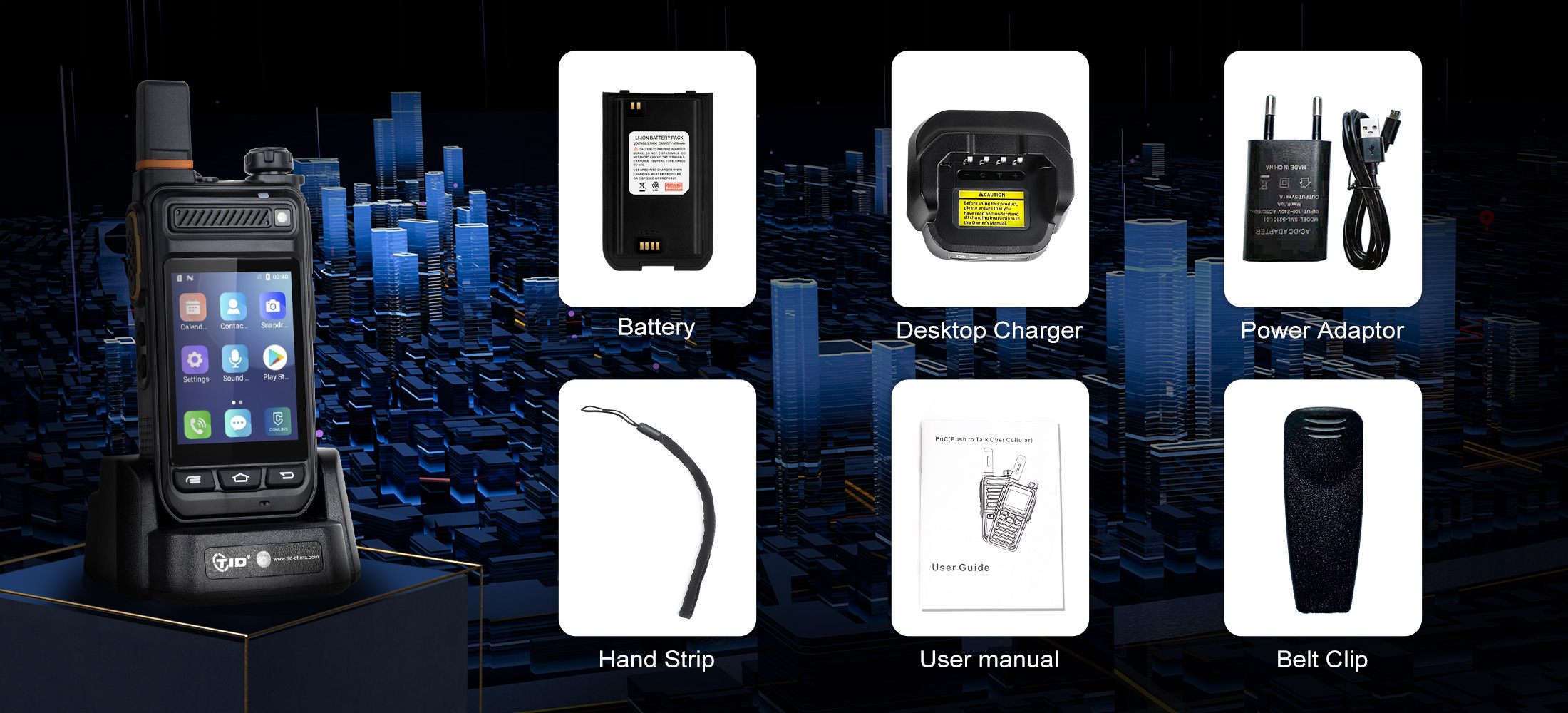

Standard Accessories
