Technical specifications

Technical Sheet
System	Android 7.1	Platform	Comlins/Zello/Walkiefleet/Real-PTT/PoC Star etc.
Version A	LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 TD-SCDMA: B34/B39 EVDO/CDMA: BC0 WCDMA: B1/B8 GSM: 900/1800MHz	Version B	LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: 850/900/1800/1900MHz
Version C	LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26 WCDMA: B1/B2/B4/B5/B8 GSM: 850/1900MHz	Version D	LTE FDD: B1/B3/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: GSM:850/900/1800/1900MHz
Version E	LTE FDD: B1/B2/B3/B5/B7/B8/B20/B28A LTE TDD: B38/B41 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz	WLAN	A Network Version: 2.4G/5G, 802.11 a/b/g/n B/C/D/E Network Version: 2.4G/5G, 802.11 a/b/g/n

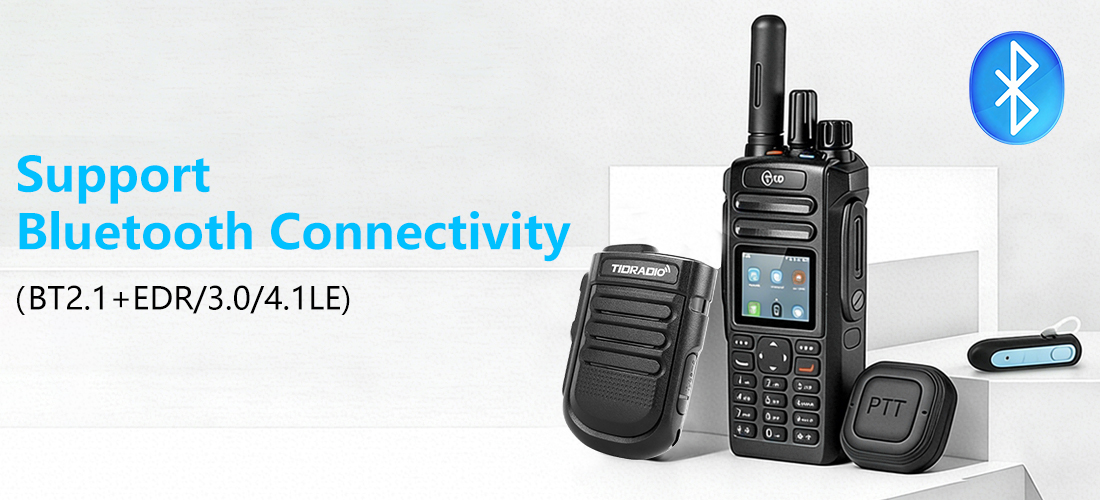

Bluetooth	BT2.1+EDR/3.0/4.1 LE	Positioning System	GPS/GLONASS/BeiDou
LTE	LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL) LTE TDD: Max 130Mbps (DL)/Max 35Mbps (UL)	UMTS	DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL) WCDMA: Max 384Kbps (DL/UL)
Ports	M Type Multi-Pin Interface Headphone Jack	Memory	RAM: 1GB ROM: 8GB

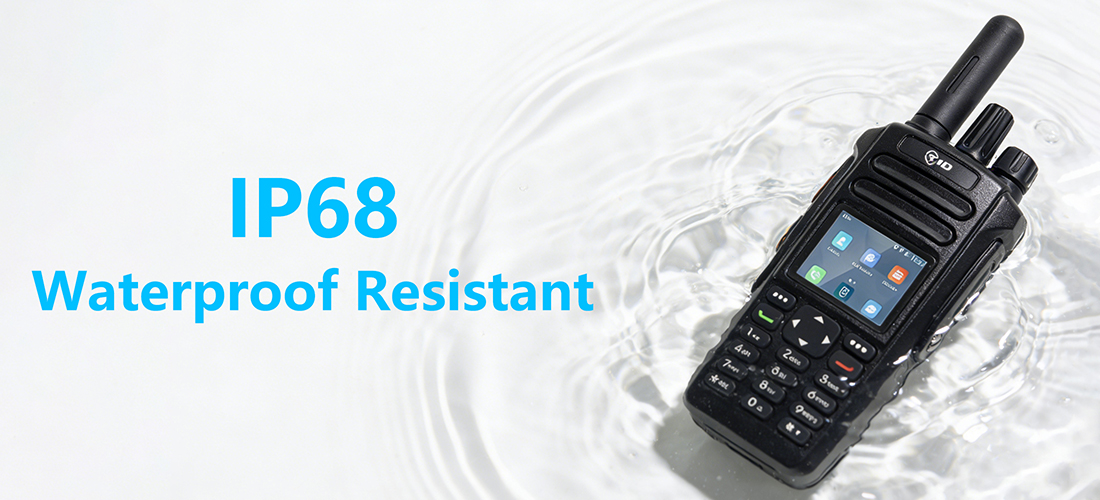

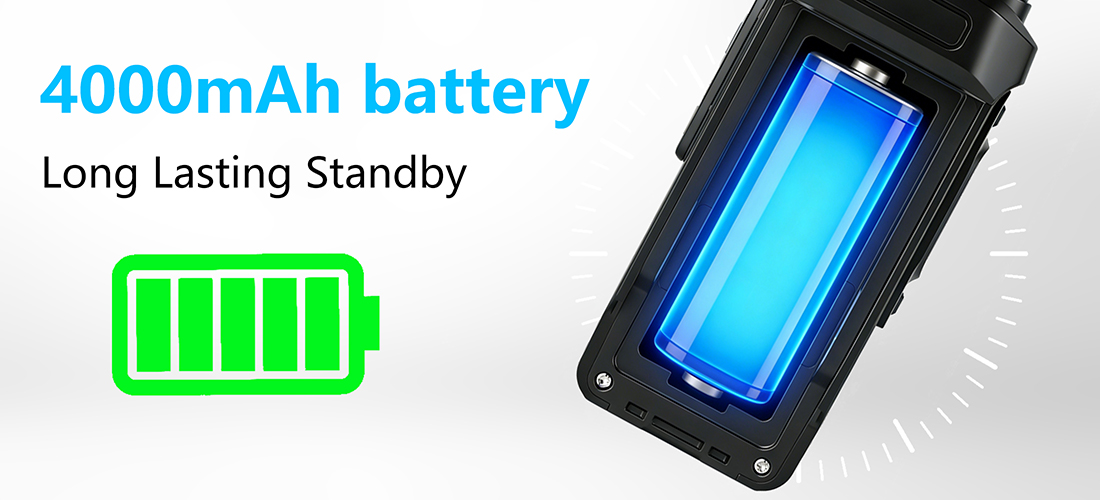

Battery	4000mAh (Li-ion)	Dust and Water Proof	IP68
Audio Power Output	2W	Operating Voltage	3.5V~4.2V，3.8V Typical Value
Dimension	1356040mm(Without Antenna)	Weight	262g (With Battery and Antenna)

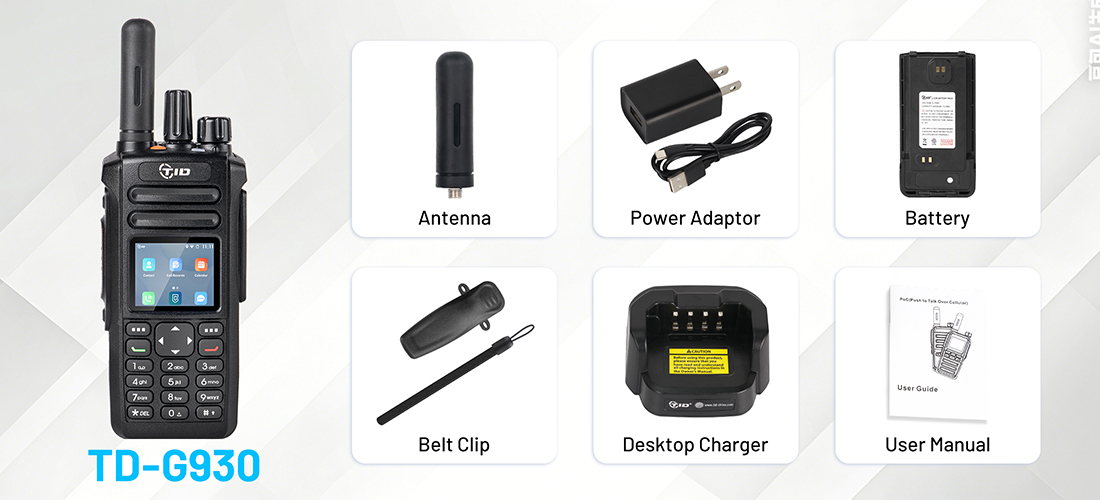

Standard Accessories
