General Specification |
||||||
| Frequency Range |
|
VHF:136-174MHz,UHF:400-480MHz |
|
Channel Capacity |
|
64 |
| Channel Spacing |
|
Analog:25.0/12.5KHz,Digital:12.5KHz |
|
Operating Voltage |
|
DC7.4V |
| Battery Capacity |
|
2500mAh (Li-ion) |
|
Battery Life (5-5-90 Duty Cycle) |
|
About 15 hours |
| Frequency Stability |
|
±2.5PPM |
|
Operating Temperature |
|
-20℃~+60℃ |
| Antenna Impedance |
|
50Ω |
|
Weight (with antenna and battery) |
|
261g |
| Dimension (HxWxD) (Without Antenna) |
|
113x52x32mm |
|
|||
|
Transmitter |
||||||

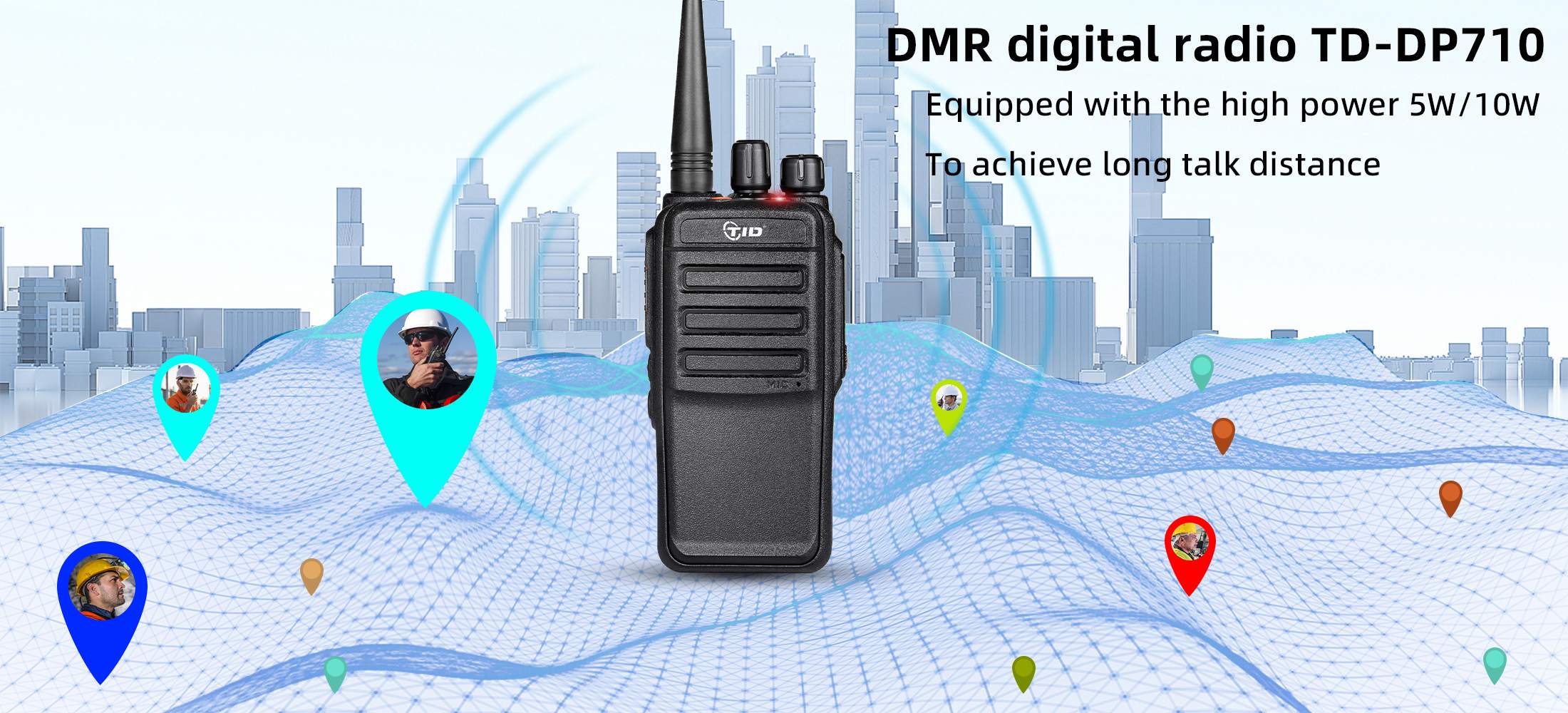

| RF Output Power |
|
10W,5W(option) |
|
Modulation Type (Digital) |
|
12.5KHz Data Only:7K6OFXD;12.5KHz Data & Volice: 7K60FXE |
| Modulation Type (Analog) |
|
11KФF3E@12.5KHz16KФF3E@25KHz |
|
Spurious and Harmonics |
|
-36dBm<1GHz; -30dBm>1GHz |
| FM Noise |
|
45/40dB |
|
Audio Distortion |
|
≤5% |
| Modulation Limiting |
|
±2.5Hz@12.5KHz;±5.0Hz@25KHz |
|
Digital Vocoder Type |
|
AMBE++ |
| Audio Response |
|
+1 to-3dB |
|
Digital Protocol |
|
ETSI-TS102 361-1,-2 |
|
Receiver |
||||||
| Sensitivity(Analog) |
|
0.30uV(12dB SINAD): 0.22(12dB SINAD) |
|
Sensitivity (Digital) |
|
≤0.30uV/BER5% |
| Selectivity |
|
≥60/65dB |
|
Intermodulation |
|
≥60dB |
| Spurious Response Rejection |
|
=60dB |
|
Conducted Spurious Emission |
|
<-57dBm |
| S/N |
|
45/40dB |
|
Audio Response |
|
+1to-3dB |
| Related audio Power Output |
|
1.5W |
|
Audio Distortion |
|
≤3% |
