General Specifications |
||||||
| Frequency Range |
|
VHF:136-174MHz UHF: 400-480MHz |
|
Number Of Channels |
|
1000 |
| Channel Spacing |
|
Analog:25/12.5KHz Digital: 12.5KHz |
|
Operating Voltage |
|
7.4V |

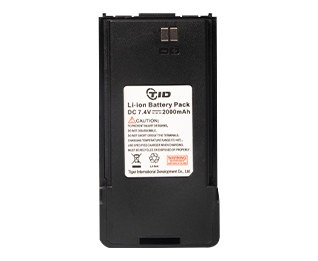

| Standard Battery |
|
2000mah (Lithium Ion) |
|
Battery Average Working Hours (5-5-90 Working Cycles) |
|
About 15 Hours |
| Frequency Stability |
|
±2.5 PPM |
|
Operating Temperature Range |
|
-20℃~+60℃ |

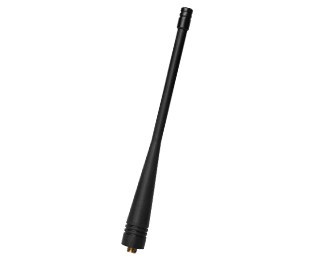

| Antenna Impedance |
|
50Ω |
|
Dimensions (H X W X D)(Without Antenna) |
|
125 X 57 X 36mm |
| Weight (Including Antenna And Battery) |
|
287g |
|
|||
|
Transmitter |
||||||
| RF Output Power |
|
VHF/UHF: 4/5W |
|
Modulation Type |
|
Analog: F3E Digital:7K60FXD/E |
| FM Noise |
|
40/45dB |
|
Spirious And Harmonics |
|
-36dBm<1ghz -30dbm="">1GHz |
| Audio Response |
|
+1 To -3dB |
|
Audio Distortion |
|
≤5% |
| Modulation Limiting |
|
±2.5@12.5KHz；±5.0@25KHz |
|
|||
|
Receiver |
||||||
| Sensitivity (Analog) |
|
≤0.30µV(12dB SINAD) |
|
Sensitivity (Digital) |
|
≤0.30µV/BER5% |
| Adjacent Channel Selectivity |
|
60/65dB |
|
Intermodulation |
|
65dB |
| Spurious Response Suppression |
|
65dB |
|
Signal To Noise Ratio |
|
40/45dB |
| Audio Output Power |
|
1.5W |
|
Audio Distortion |
|
≤3% |
| Audio Response |
|
+1~-3dB |
|
Conduction Emission Miscellaneous |
|
<-57dBm |
