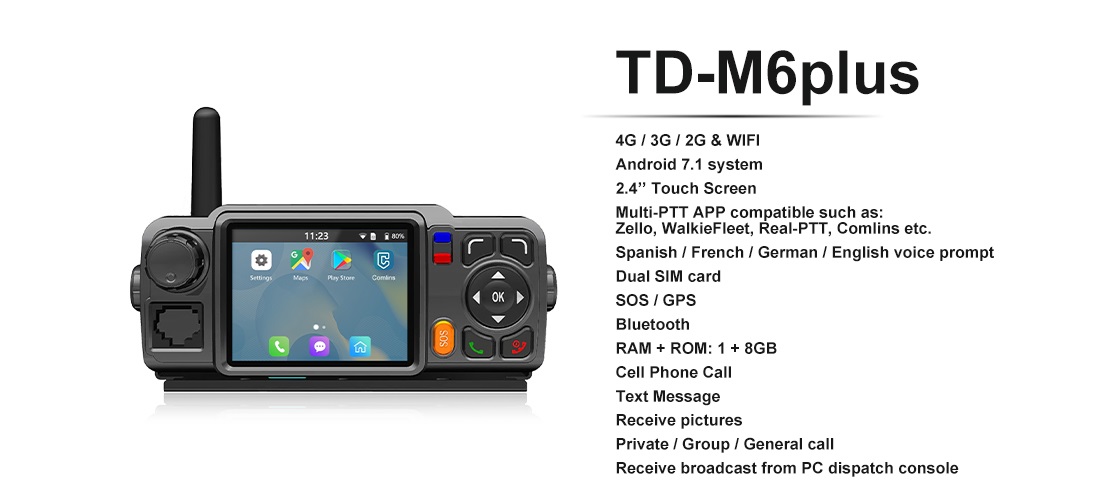

Technical Specification |
||||||
| System |
|
Android 7.1 |
|
Service Platform |
|
Multi Platforms( Zello, Walkiefleet, Real PTT, Comlins, POC Star, etc) |
| Network Version A |
|
LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 TD-SCDMA: B34/B39 EVDO/CDMA: BC0 WCDMA: B1/B8 GSM: 900/1800MHz |
|
Network Version B |
|
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: 850/900/1800/1900MHz |
| Network Version C |
|
LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26 WCDMA: B1/B2/B4/B5/B8 GSM: 850/1900MHz |
|
Network Version D |
|
LTE FDD: B1/B3/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz |
| Network Version E |
|
LTE FDD: B1/B2/B3/B5/B7/B8/B20/B28A LTE TDD: B38/B41 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz |
|
WLAN |
|
A Network Version : 2.4G/5G, 802.11 a/b/g/n B/C/D/E network version: 2.4G/5G, 802.11 a/b/g/n |
| Bluetooth |
|
BT2.1+EDR/3.0/4.1/4.2LE |
|
Positioning System |
|
GPS/GLONASS/BeiDou |
| LTE |
|
LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL) LTE TDD: Max 130Mbps (DL)/Max 35Mbps (UL) |
|
UMTS |
|
DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL) WCDMA: Max 384Kbps (DL/UL) |
| Display |
|
2.4" 240*320 PX Capacitive Touch Panel |
|
Ports |
|
Type C 3.5mm Audio Jack USB Charger Interface |
| Memory |
|
RAM: 1GB ROM: 8GB |
|
SIM Interface |
|
×1 Micro SIM (12*15mm), 1.8V/2.95V |
| SD Card |
|
× 1 SD Card (3.0, 4-bit SDIO) |
|
Dust and Waterproof |
|
IP54 |
| Audio Power Output |
|
2W |
|

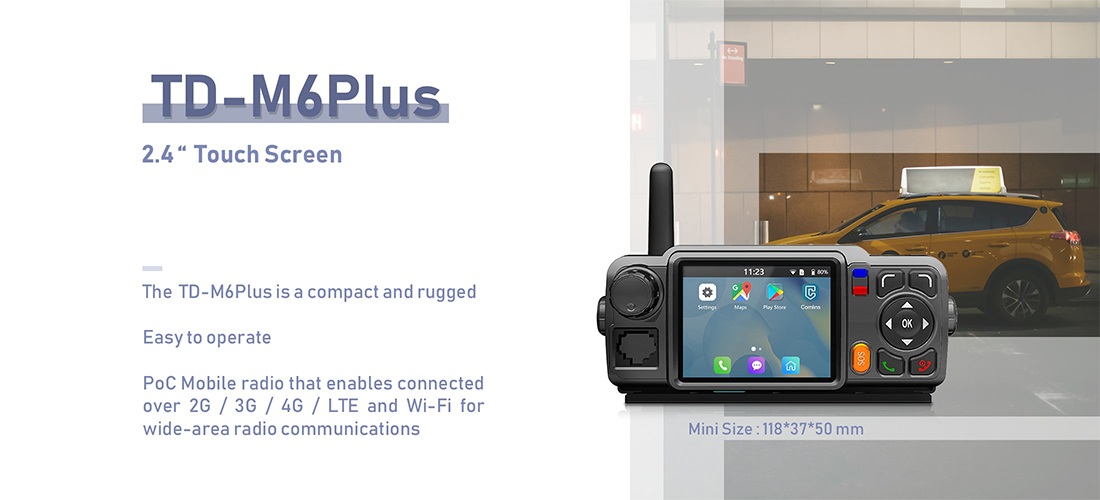

Dimensions |
|
118*37*50mm (without Antenna) |
| Weight |
|
230g (with battery and antenna) |
|
Operating Voltage |
|
3.5V~4.2V, 3.8V Typical Value |
